DJI Matrice 30 + BS30 +2*TB30

Matrice 30 Series

Power in Portability

Unique aerial intelligence to capture everything

Reliable in the harshest of environments

Portable to go wherever you go

Ready, when you are, to overcome the unknown

A New Generation of Commercial Drones

Matrice 30

Matrice 30 T

Powerful Flight Performance

A balance of power and portability delivers higher operational efficiency

41-min

Max Flight Time¹

15 m/s

Wind Resistance²

7000 m

Service Ceiling³

23 m/s

Max Speed

Environmental Adaptability

With IP55 protection, the M30 can easily handle adverse weather and temperatures ranging from -20° C～50° C.

Safe and Reliable

Dual-vision and ToF sensors appear on all six sides of the aircraft, keeping it and your mission safe. The built-in ADS-B receiver provides timely warnings of any incoming crewed aircraft nearby.

Redundancies and Backup Systems

Built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.

Enhanced Transmission

Four built-in antennas support OcuSync 3 Enterprise, which enables triple-channel 1080p video transmission, and seamless swapping between input feeds, even in complex environments.

Bolster your connection with DJI Cellular Module, an optional 4G dongle4 that supports stable video transmission in complex, or remote work environments.

Lightweight and Portable

Compact and foldable, the M30 Series is easy to pack up, carry, and deploy.

Capture Everything

The M30 Series integrates wide, zoom, and thermal cameras (M30T only) with a laser rangefinder, which together can capture the aerial data you need, when you need it.

Wide Camera

Equivalent Focal Length: 24 mm, DFOV: 84°
12 MP 1/2'' CMOS Sensor
Video Resolution: 4K/30fps

Zoom Camera

48 MP 1/2'' CMOS Sensor
5x-16x Optical Zoom
200x Max. Hybrid Zoom
Photo Resolution: 8K
Video Resolution: 4K/30fps

Thermal Imaging Camera

Equivalent Focal Length: 40 mm
Resolution: 640×512
Frame Rate: 30fps
Measurement Accuracy: ±2°C or ±2%⁵

Laser Rangefinder

Range: 3 m - 1200 m
Accuracy: ±(0.2m+D×0.15%)⁶

Superior Image Quality

Night Flight

With the FPV camera optimized for low-light conditions, the ground and skyline are clearly visible, even at night, so you can fly with safety and confidence.

Smart Low-Light Photo

Capture bright, clear images in low-light conditions with Smart Low-Light Photo.

RGB

See it all from above.

Infrared

Find hotspots and heat signatures thanks to high-resolution thermal capabilities.

Laser Rangefinder

PinPoint an object in view, and advanced sensor fusion algorithms immediately deliver its coordinates.

A Revolutionary Flight Control Experience

Built For Commercial Drone Pilots

The 7-inch widescreen DJI RC Plus with dual control mode is tailor-made for Enterprise users.

Enterprise
Environmental
Adaptability

IP54 Protection

Water and dustproof

-20°C to 50°C

Capable in climates both hot and cold

Improved Stability and Battery Life

Four Antenna OcuSync 3 Enterprise

Cover more area with stable video transmission and removable dual-antennas.

DJI Cellular Module⁴

Attach a DJI Cellular Module for added 4G support to supplement OcuSync 3 Enterprise.

Extended Battery Life

Internal and external battery configuration powers 6 hours of battery life and enables hot-swapping for seamless, uninterrupted flight operations.

Introducing the All-new DJI Pilot 2

A revamped Enterprise flight interface designed to improve piloting efficiency and flight safety.

Reimagined User Interface

Drone and payload controls can be easily accessed with one tap. Clear presentation of flight details and navigational information improves user experience and flight efficiency.

Ergonomic Design For Safety and Efficiency

Pilot 2 works seamlessly with the DJI RC Plus. Screenside and customizable buttons are all within reach and enable quick operations, such as adjusting camera views and dropping PinPoints.

Flight Safety

Pre-flight Checklist

A comprehensive checklist helps you quickly confirm aircraft status and parameter settings, so you can take off with confidence.

Navigation Display

An optimized interface displays your home point, PinPoints, and nearby obstacles to improve safety and provide comprehensive situational awareness.

Alert Notifications

Stay updated with timely alerts as conditions and scenarios evolve.

DJI FlightHub 2

Ground-to-Cloud Synergy

Master Your Mission Environment

FlightHub 2 offers a 2.5D Base Map for quick terrain awareness, One-Tap Panorama Sync for rapid site overviews, and Cloud Mapping for fast mapping in RGB or infrared.

Mission Live Streaming

Connect multiple users to one or many drone operations simultaneously, and keep teams updated with the latest developments thanks to low latency, high-resolution livestreaming.

Live Annotations

Highlight objects or areas of interest for efficient mission management and resource distribution. Annotations are visible to ground teams, pilots, or any team member for timely project alignment and task distribution.

Streamlined Team Communication

Synchronize valuable information such as teams position, drone status, mission details and more, in real time and across multiple device types, making team collaboration easier than ever.

Advanced Intelligence

Route Planning and Management

Flight routes and missions planned in FlightHub 2 can be easily synchronized with Pilot 2. Operation data can be automatically uploaded to FlightHub 2 Media Files for unified management and analysis.

Route Planning and Management

Flight routes and missions planned in FlightHub 2 can be easily synchronized with Pilot 2. Operation data can be automatically uploaded to FlightHub 2 Media Files for unified management and analysis.

DJI Dock, For Road Less Traveled

Non-stop Ops

The DJI Dock (M30 Series Dock Version7) has flagship-level performance with a maximum operation range of 7 km8, IP55 weather resistance, and resilience in temperatures ranging from -35℃ to 50℃.

Fast Charging, Fast Turnaround

Fast charge and take off thanks to TEC air conditioning that cools the drone batteries, enabling charging from 10-90% in just 25 minutes⁹.

Cloud Platform Management

With FlightHub 2, unlock full DJI Dock functionality from the cloud. Schedule missions, create and edit flight routes, and manage data collected.

Private Deployment

Cloud API opens up DJI Dock functionality to developers and system integrators, who can set up a custom, private server.

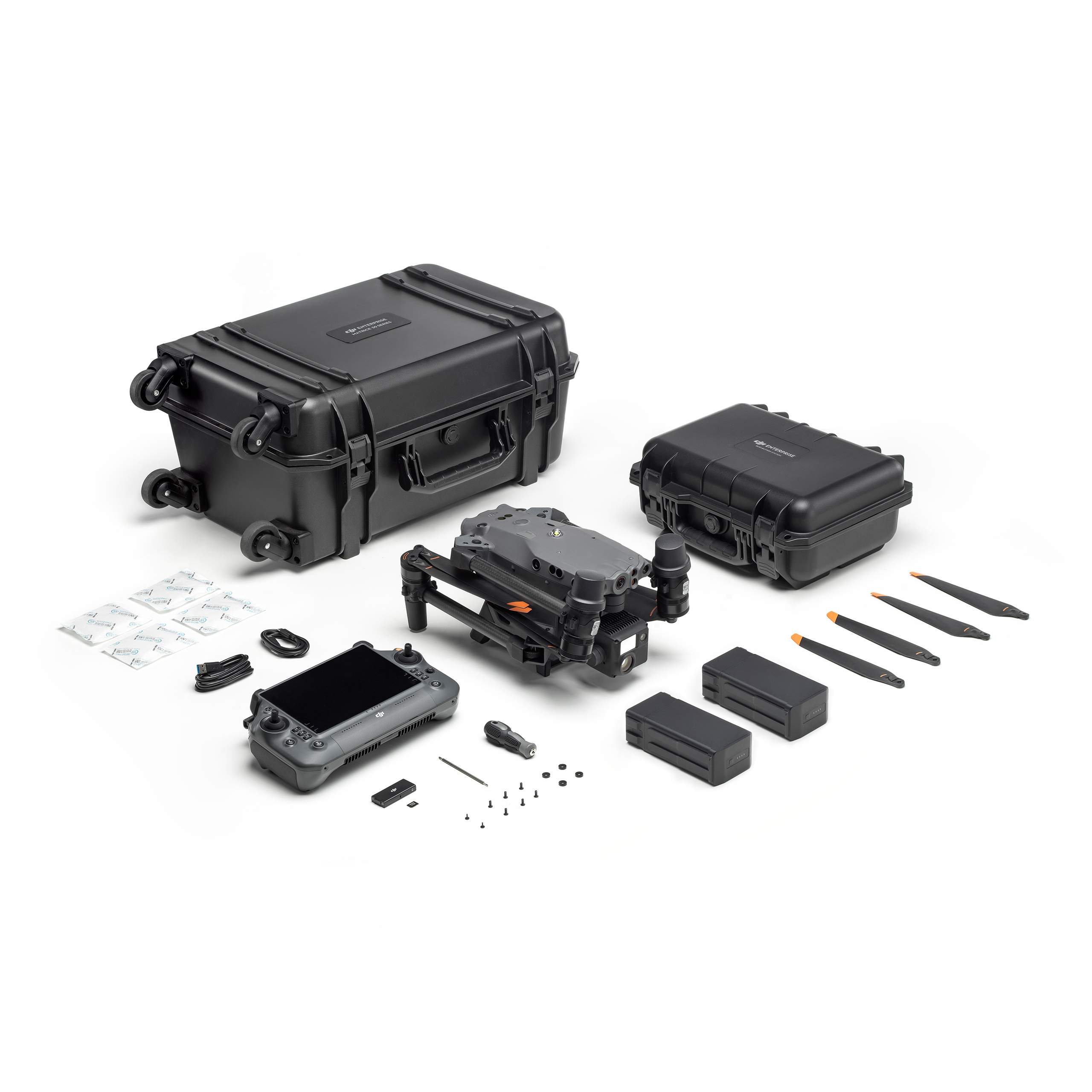

Core Package

The Matrice 30 Series (M30 or M30T) comes with a DJI RC Plus, two TB30 Intelligent Flight Batteries, one BS30 Intelligent Battery Station, and the aircraft storage case.

BS30 Intelligent Battery Station

A smart, portable solution with multiple charging modes to meet your mission needs. Capable of charging four pairs of TB30 Intelligent Flight Batteries and one pair of RC Plus batteries, pairs are charged one at a time, with one pair taking just 30 minutes to charge from 20-90%.

TB30 Intelligent Flight Battery

Each battery supports self-heating for cold environments, hot-swapping for fast turnarounds, and 400 charge cycles10 for increased operational efficiency.

DJI Cellular Module⁴

Provides 4G based transmission link between the drone and remote controller, while also enabling internet connection for the remote controller.

User Data Security

SD Card AES Encryption

Local Data Mode

One-Tap Clear All Device Data

AES-256 Video Transmission Encryption

Cloud API

Show less

Category: DJI MATRICE

Aircraft

Operation Frequency	2.4000-2.4835 GHz; 5.725-5.850 GHz
Transmitter Power (EIRP)	2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE
Hovering Accuracy	Vertical:’+/-0.1 m (Vision System enabled);’+/-0.5 m (N-mode with GPS);’+/-0.1 m (RTK) Horizontal:’+/-0.3 m (Vision System enabled);’+/-1.5 m (N-mode with GPS);’+/-0.1 m (RTK) (windless or breezy)
RTK Positioning Accuracy	1 cm+1 ppm (horizontal) 1.5 cm+1 ppm (vertical) (fixed RTK enabled)
Max Angular Velocity	Pitch: 150 Degree /sec.; Yaw: 100 Degree /sec.
Max Tilt Angle	35 Degree (N-mode and Forward Vision System enabled: 25 Degree )
Max Ascent/Descent Speed	6 m/s, 5 m/s
Max Tilt Descent Speed	7 m/s
Max Horizontal Speed	23 m/s
Max Service Ceiling Above Sea Level	5,000 m (with 1671 propellers) 7,000 m (with 1676 propellers) (without other payload)
Max Wind Resistance	15 m/s 12 m/s during taking off and landing
Max Hover Time	36 min
GNSS	41 min
Ingress Protection Rating	IP55
Dimensions (L x W x H)	Unfolded, excl. propellers: 18.5 x 23 x 8.4″ (470 x 585 x 215mm) Folded: 14.3 x 8.4 x 7.6″ (365 x 215 x 195mm)
Max Takeoff Weight	8.8 lbs (4kg)

TB30 Intelligent Flight Battery

Capacity	5880 mAh
Voltage	26.1 V
Battery Type	LiPo 6S
Energy	131.6 Wh
Operating Temperature	-4 Degree to 122 Degree F (-20 Degree to 50 Degree C)
Storage Temperature	20 Degree to 30 Degree C (68 Degree to 86 Degree F)
Charging Temperature	-20 Degree to 40 Degree C (-4 Degree to 104 Degree F)(When the temperature is lower than 10 Degree C (50 Degree F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
Chemical System	LiNiMnCoO2

Gimbal

Angular Vibration Range	+/-0.01 Degree
Controllable Range	Pan:’+/-90 Degree Tilt: -120 Degree to’+45 Degree
Mechanical Range	Pan:’+/-105 Degree Tilt: -135 Degree to’+60 Degree Roll:’+/-45 Degree

Zoom Camera

Sensor	1/2″ CMOS, Effective pixels: 48M
Lens	Focal length: 21-75 mm (equivalent: 113-405 mm) Aperture: f/2.8-f/4.2 Focus: 5 m to Infinite

Wide Camera

Sensor	1/2″ CMOS, Effective pixels: 12M
Lens	DFOV: 84 Degree Focal length: 4.5 mm (equivalent: 24 mm) Aperture: f/2.8 Focus: 1 m to Infinite

FPV Camera

Resolution	1920 x 1080
DFOV	161 Degree
Frame Rate	30 fps

Aircraft

What’s the difference between the Matrice 30 and the Matrice 30T?

The Matrice 30 series includes two versions: M30 (its gimbal and camera have three sensors: wide-angle camera, zoom camera, laser range finder) and M30T (its gimbal and camera have four sensors: wide-angle camera, zoom camera, laser range finder, thermal imaging camera).

Which version of the M30 is compatible with the DJI Dock?

The DJI Dock is compatible with the M30 (Dock version) and the M30T (Dock version), but not regular M30 series drones. This is because the M30 (Dock version) has slight differences in its body to be compatible with the DJI Dock. When you purchase the DJI Dock, it includes the M30 (Dock version) or the M30T (Dock version).

Is frame arm lock detection supported?

Supported. M30 series aircraft comes with frame arm lock function. If the arm is not unfolded properly, the app will give a warning to prohibit takeoff.

Battery

How long does it take to fully charge two TB30 Intelligent Flight Batteries?

With a BS30 Intelligent Battery Station, it takes about 50 minutes to fully charge the two TB30 Intelligent Flight Batteries, about 40 minutes to charge up to 90%, and only about 30 minutes to charge up from 20% to 90%.

Can TB30 Intelligent Flight Batteries be used in low temperature environments?

TB30 Intelligent Flight Batteries can work in operating environments with temperatures ranging from -20°C (-4°F) to 50°C (122°F). Battery life will be shortened when used in low temperature environments. Please plan your flight times accordingly. For optimal battery performance, it’s recommended to keep the battery temperature above 18°C (64°F), or heat the battery to 18°C (64°F) with its self-heating function (a takeoff limit will be triggered if the battery temperature is below 10°C (50°F)).

Can I board a plane with a TB30 Intelligent Flight Battery?

TB30 Intelligent Flight Battery’s power level is 131.6 watt hours. Please comply with local airline regulations when planning to fly with batteries.

Why does the battery heat up when stored for a long time?

Long-term storage of a lithium battery at full charge will significantly shorten its battery life. In order to ensure safe storage and extend the battery life, a fully charged battery will activate its auto-discharging function to discharge itself to a level of about 60%. During the auto-discharging process, it will release some heat, which is normal.

Battery Station

Does the BS30 Intelligent Battery Station support auto-discharging?

Not supported.

Remote Controller

Is the M30 series remote controller (RC) compatible with the Matrice 300 RTK?

It will be supported in the future.

Gimbal and Camera

Can the gimbal and camera of the M30 Series be replaced with other payloads?

Gimbal and camera are fixed cannot be replaced.

What photo modes are available on the M30 series aircraft?

Single Shot, High-res Grid Photo, Timed Shot, Panorama, and Smart Low-light Photo

How to use the gimbal lock function? Why does it need to lock the gimbal?

Flip the gimbal up by 90° to lock its tilt.
Lock the tilt to better protect the camera lens and prevent scratches during transportation or storage of the aircraft. The gimbal can be quickly and easily unlocked when arriving at the operation site, greatly reducing preparation time for the operation.

Application

Does the M30 series support SDK function?

Supports Payload SDK and Mobile SDK. The Payload SDK interface on top of M30 series aircraft integrates the functions of Onboard SDK.
Please contact dev@dji.com for further technical support.

Does the M30 series support accurate mapping?

Not supported. TheM30 series is not designed for aerial surveying. Users can plan a flight path and capture photos in the aerial FPV mode of DJI Pilot 2.0 App, but the model’s accuracy is not guaranteed.

Can the M30 series be used with D-RTK 2 Mobile Station?

Yes. Upgrade the firmware of D-RTK 2 Mobile Station to the latest version to use with the M30 series.

Software

How to upgrade the firmware of the M30 series?

1. Connect the aircraft to a computer and update the firmware of the aircraft, remote controller (RC), and D-RTK 2 Mobile Station by using DJI Assistant 2 For Enterprise.
Use DJI Pilot 2.0 App to update the firmware of the aircraft, remote controller (RC), and BS30 Intelligent Battery Station.
Download the firmware on DJI website(hyperlink), and insert the SD card with the firmware package into the aircraft for offline update.
See the User Manual for more information.

Does the M30 series support dual control?

Supported.

Which apps are supported by the M30 series?

DJI Pilot 2.0 (For Android) and other software developed by using MSDK.

Other

Can the M30 series be used in different regions?

The M30 series includes two versions: the Chinese version and the International version. Please check with the local aftersales service center and the dealers about the availablity of the product.
