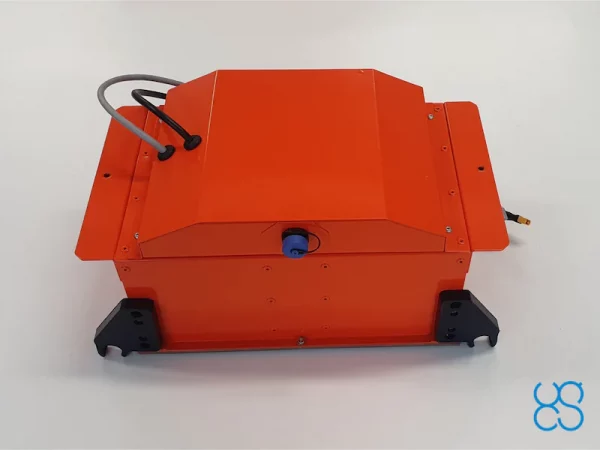

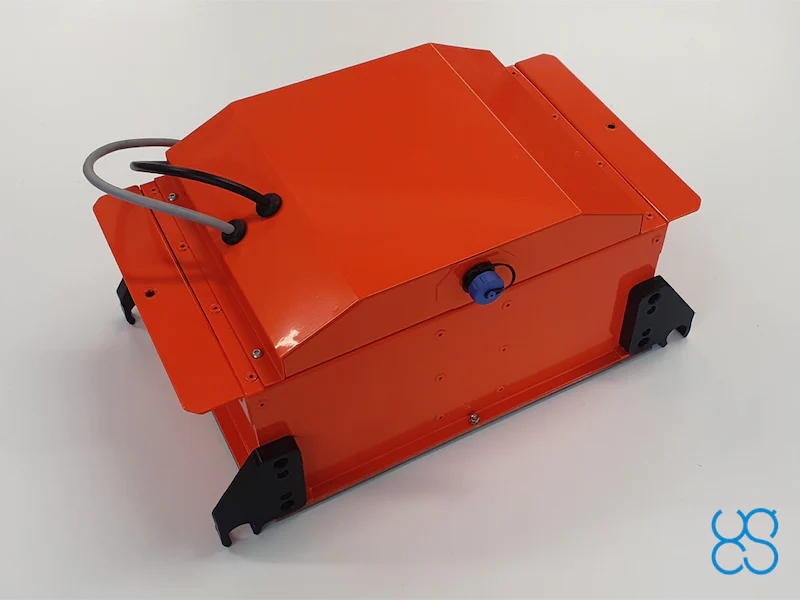

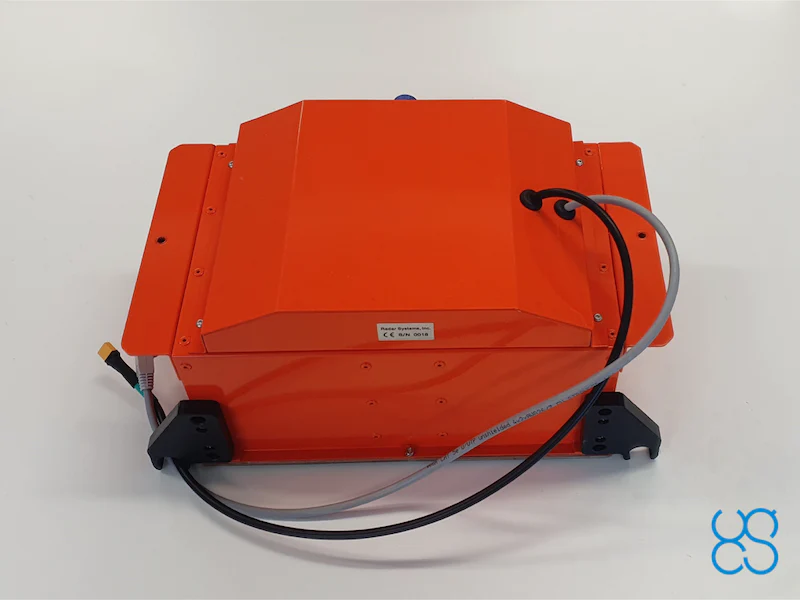

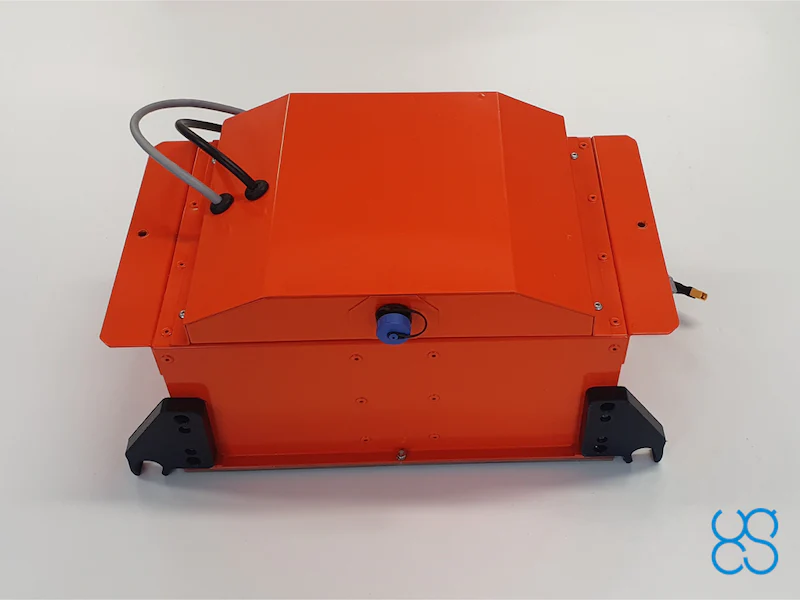

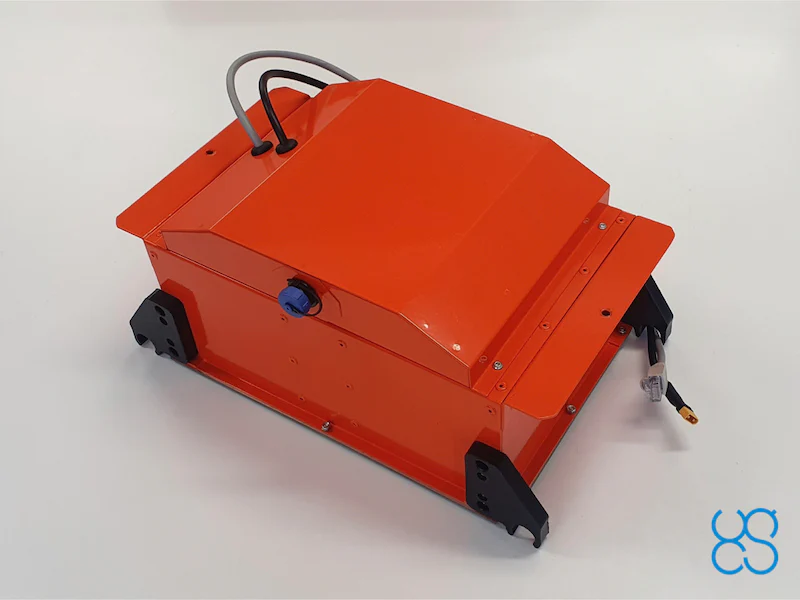

GPR system: Radar Systems Zond Aero 1000

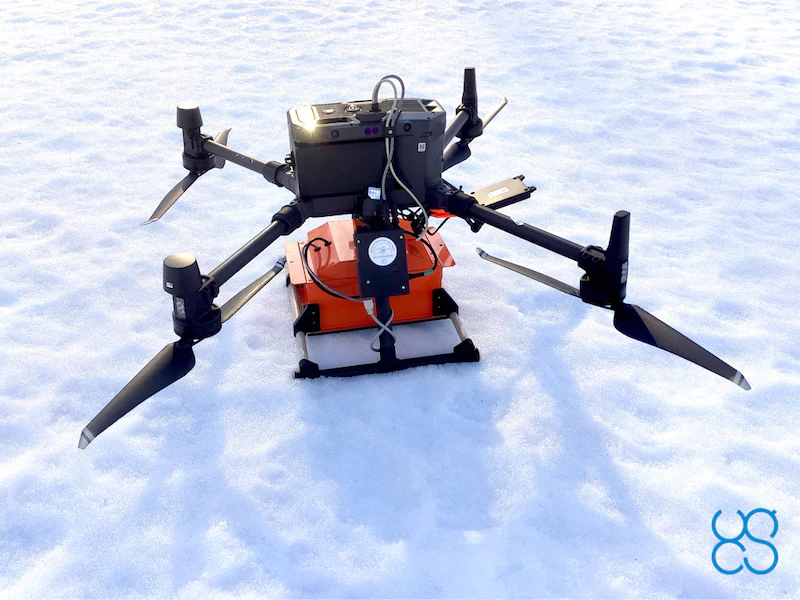

Lightweight GPR system, suitable for medium-sized drones like DJI M300 RTK.

Includes a transportation box and mountings for the DJI M300 RTK or DJI M600 Pro drone.

HS Code: 90158020 (meteorological, hydrological, geophysical instrument

Lightweight GPR system, suitable for medium-sized drones like DJI M300 RTK.

Includes a transportation box and mountings for the DJI M300 RTK or DJI M600 Pro drone.

HS Code: 90158020 (meteorological, hydrological, geophysical instrument)

Please note that additional components and software must be ordered to use this GPR with drones. It is recommended to order a complete set.

Type Single-channel with shielded antenna
Center frequency 1000 MHz
Operating bandwidth 600-1300 MHz (-6 dB)
Samples 512 per trace
Sample rate 25600 samples/second
Scan rate 50 scans/s
Sample output 16-bit digital raw data
Time range Selectable time range 50, 100, 200 or 300ns
Depth Up to 2 meters depending on ground properties
Data format Standard Geophysical SEGY Data Format (.sgy) with traces geotagging
ENVIRONMENTAL
Temperature -20°C to 60°C internal temperature
Humidity 96% non-condensing
Ingress protection IP68 in a protective box (used for transportation and for ground surveys) IP52 in airborne variant
MECHANICAL
Size (L x W x H)
  • 31 x 19 x 15 cm – airborne configuration
  • 52 x 43 x 21 cm – in protective case
  • 71 x 45 x 28 cm – carton box for delivery
Weight
  • 1.7 kg – airborne configuration without mounting kit for the drone
  • 7.0 kg – in a protective case
  • 10.0 kg – in a cardboard box for delivery
BATTERY
Airborne variant DJI M300 RTK or M600/M600 Pro drone main battery is used to provide power to the GPR using standard power socket of the drone intended for payload
Ground surveys The battery is integrated into a protective box, operating time up to 12 hours 99 W/h Li-Ion
WHAT’S IN THE KIT
  • Zond Aero 1000 GPR system with 1000 MHz center frequency antenna
  • Prism 2 Data Acquisition/Processing software
  • NANUK protective case (also used for ground surveys)
  • 99 W/h Li-Ion battery integrated into the case (used for ground surveys only)
  • Wi-Fi router integrated into the case (used for ground surveys only)
  • Charger
  • Tow rope for terrestrial surveys
  • Mounting kit to fix GPR system on the DJI M300 RTK or M600/M600 Pro drone
