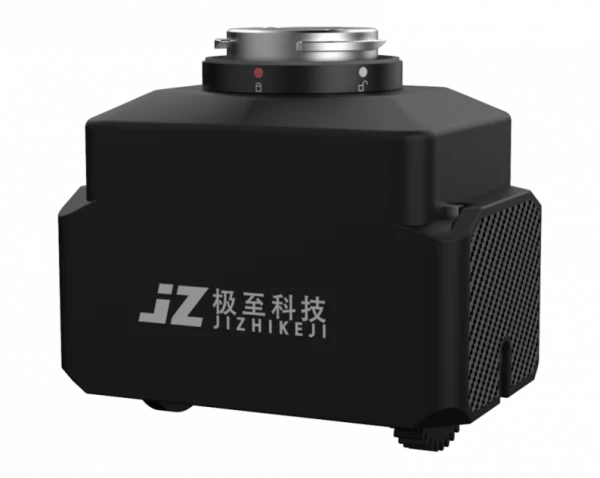

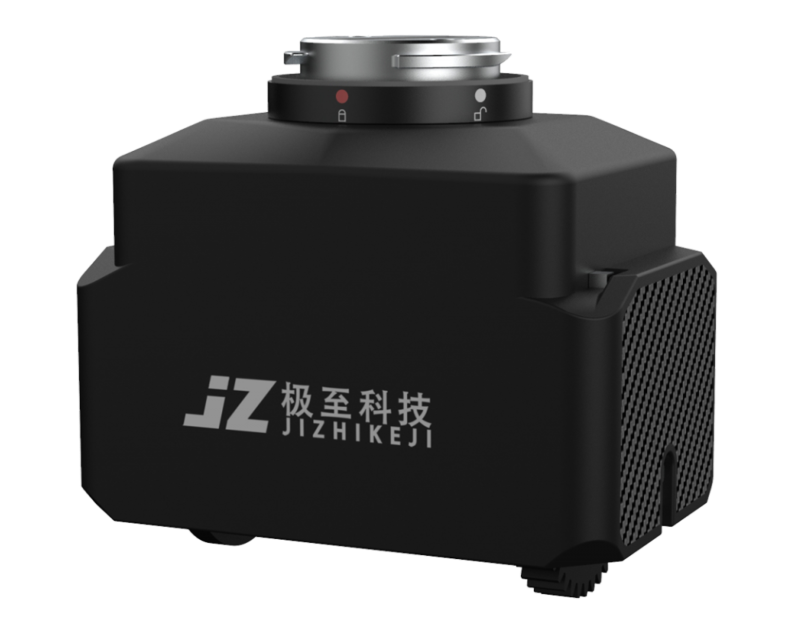

JZ PT2 MUITI_USE DROP KIT

The JZ PT2 MUITI_USE DROP KIT is a multifunctional air drop device based on DJI PSDK. It fits DJI gimbal components and weighs only 250g, making it very lightweight. The device can be controlled using the DJI Pilot 2, which can be used as a two-stage airdrop or in conjunction with the take-up reel for rope retracting.

Category

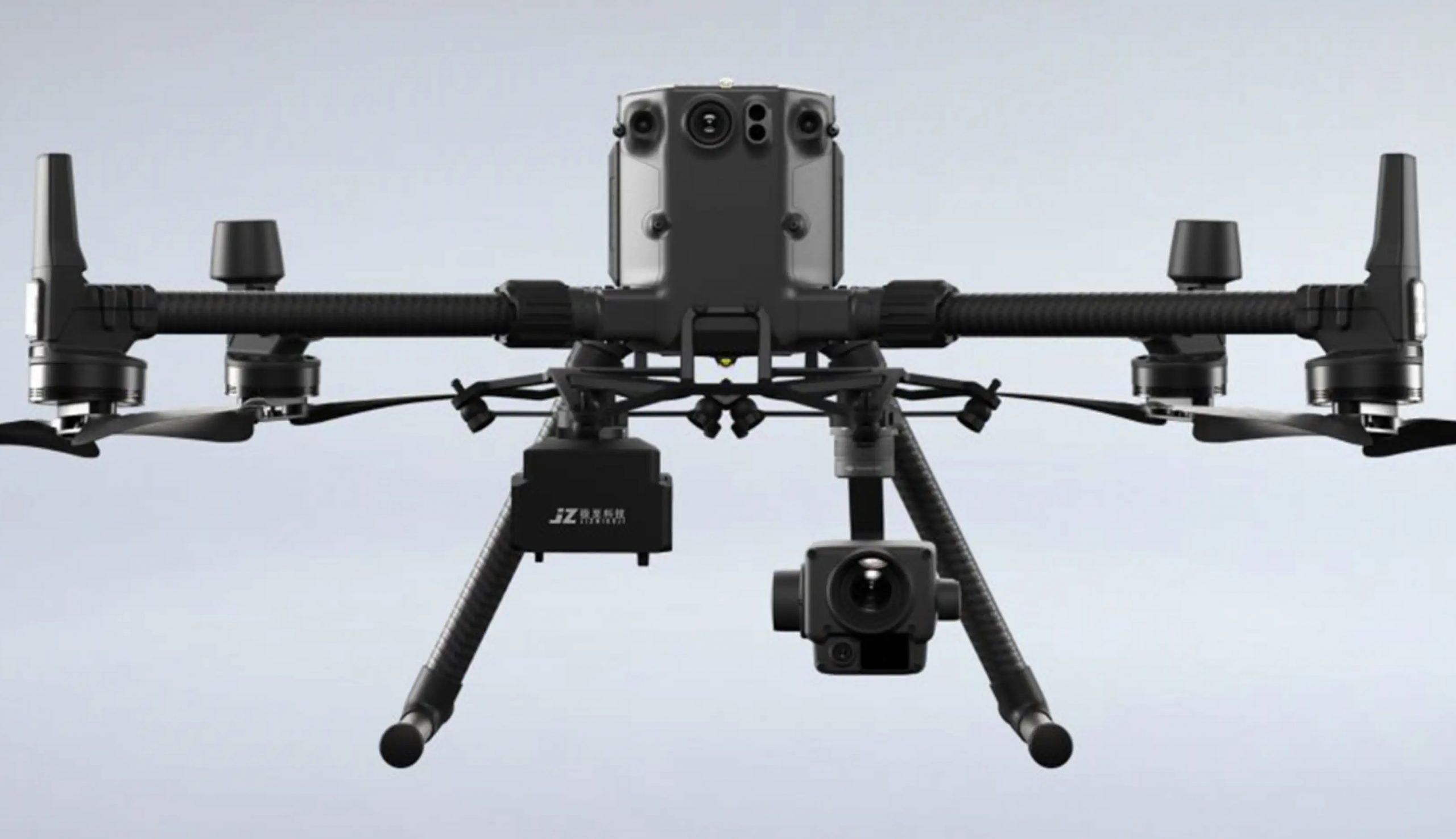

The JZ PT2 MUITI_USE DROP KIT is a multifunctional air drop device based on DJI PSDK. It fits DJI gimbal components and weighs only 250g, making it very lightweight. The device can be controlled using the DJI Pilot 2, which can be used as a two-stage airdrop or in conjunction with the take-up reel for rope retracting. In case of emergency, the user can drop the wire reel by one-click operation, achieving fast and safe operation. The PT2 is compatible with the DJI Matrice 350 RTK and DJI Matrice 300 RTK, which makes it perfectly compatible with DJI’s drone products. Users can pair the PT2 with these drones for a wider range of application scenarios. In summary, the PT2 MUITI_USE DROP KIT is a functional and lightweight drop device. Its suitability, reliability and safety make it an ideal choice for applications in the drone industry. Whether in rescue missions, material delivery or other application scenarios, the PT2 provides efficient and accurate aerial delivery capabilities.

Mount Detection

Two mounting positions, no order, automatic identification of mounting position, DJI Pilot 2 real-time display of each position mounting status.

Drop at Will

Control independent delivery with DJI Pilot 2, unlimited sequence, i.e. point-to-point delivery. It can also be used with one click, efficient and fast.

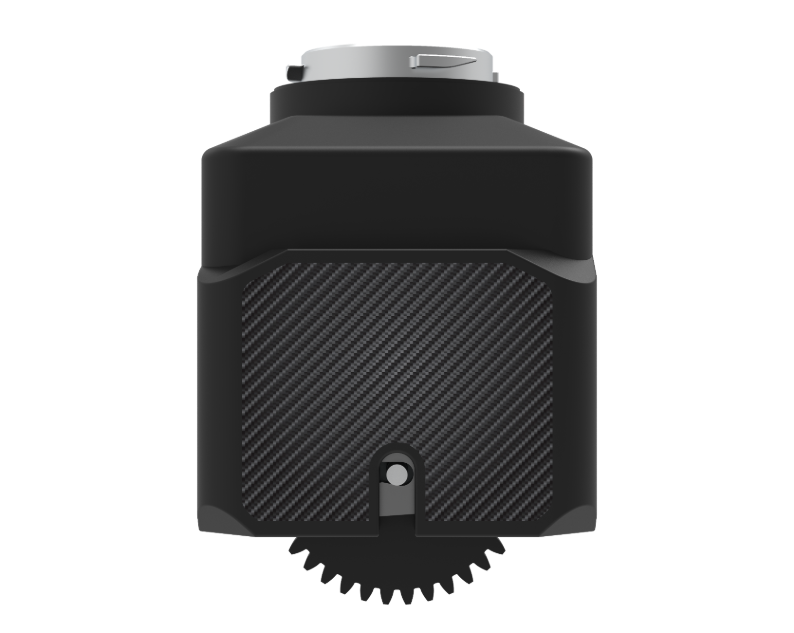

One Click Retracting and Releasing Rope

With the DJI Pilot 2, one key controls the positive and negative rotation of the motor to realize the one-key retracting and retracting of the rope. In case of emergency, one key can be dropped to avoid damage to the drone.

  • Mount Quantity – 2 Paragraphs
  • Hanging Weight – 2.5kg
  • Bracket Interface – SkyPort
  • Control Mode – DJI Pilot 2
Category:
  • electrical interface
  • DJI SkyPort V2
  • size
  • 88.8 x 58 x 75 mm
  • weight
  • 250g
  • Compatible Models
  • M350 RTK
    M300 RTK (note: can be downgraded to support D
  • Number of mounts
  • 2 paragraphs
  • rating
  • 24W
  • Protection level
  • IP4X
  • Individual mounting weight
  • Maximum 2.5kg, actual weight is subject to aircraft loading
  • gross vehicle weight
  • Maximum 5kg, actual weight is subject to aircraft load
  • delivery sequence
  • not limited to
  • drop-in function
  • Single-point drop, one-button full drop
  • operational control
  • DJI Pilot 2
  • the ability to rope down
  • Push button control, one button lift
  • Installation
  • Gimbal Interface Quick Release
  • gross vehicle weight for rappelling
  • 2.5 kg
  • emergency drop
  • One click off the hook, throw down the take-up reel
  • operating temperature
  • -10 °C to 50 °C
  • Storage temperature
  • -20 ℃ to 60 ℃
