JZ PTS4 VISUAL DROP KIT

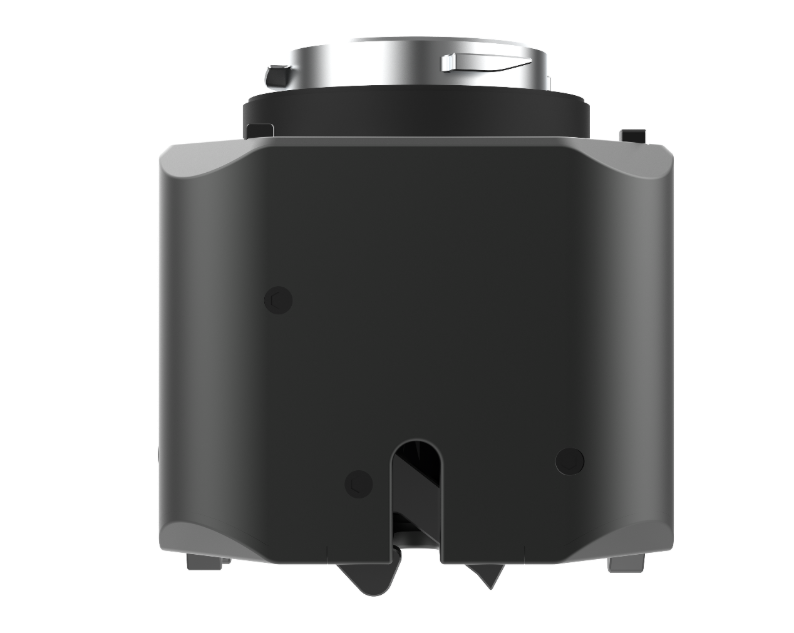

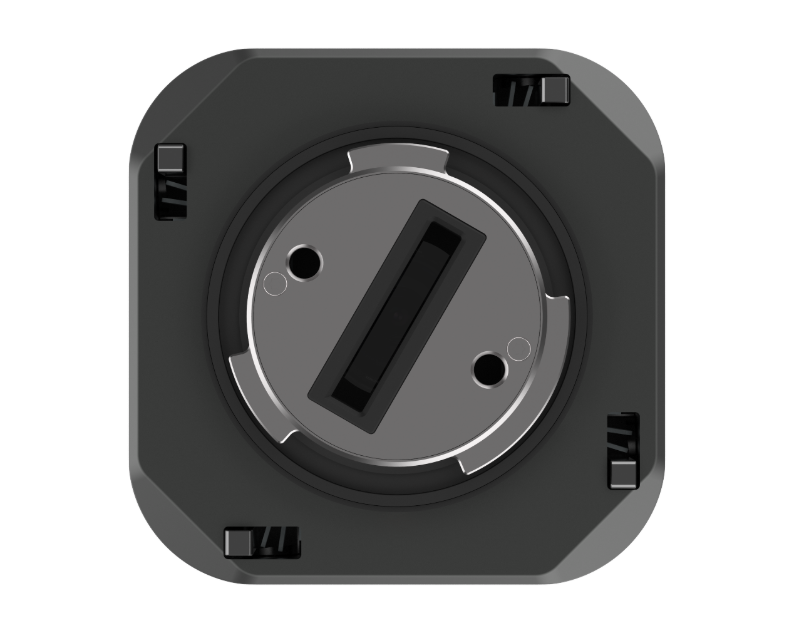

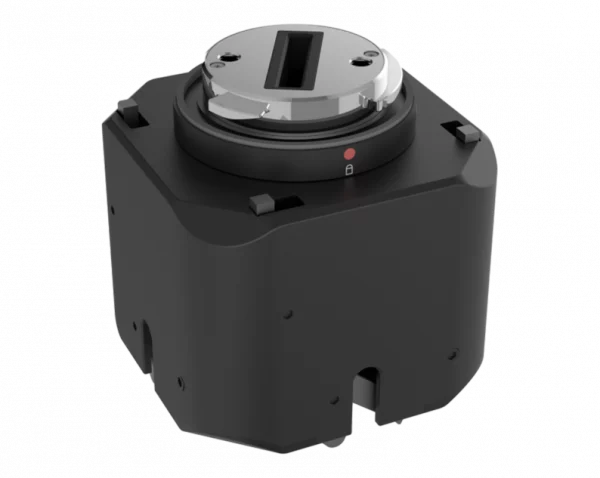

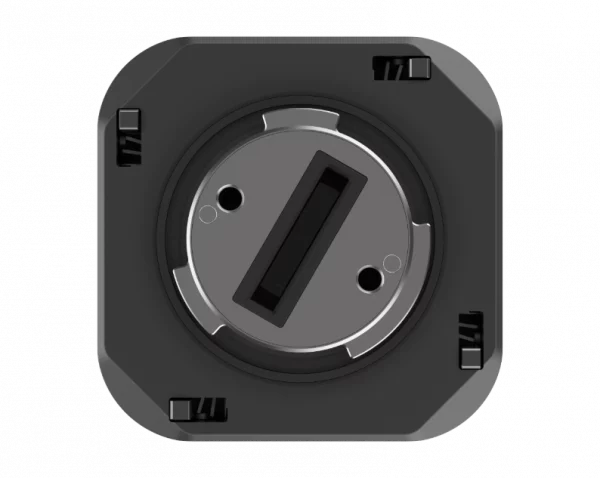

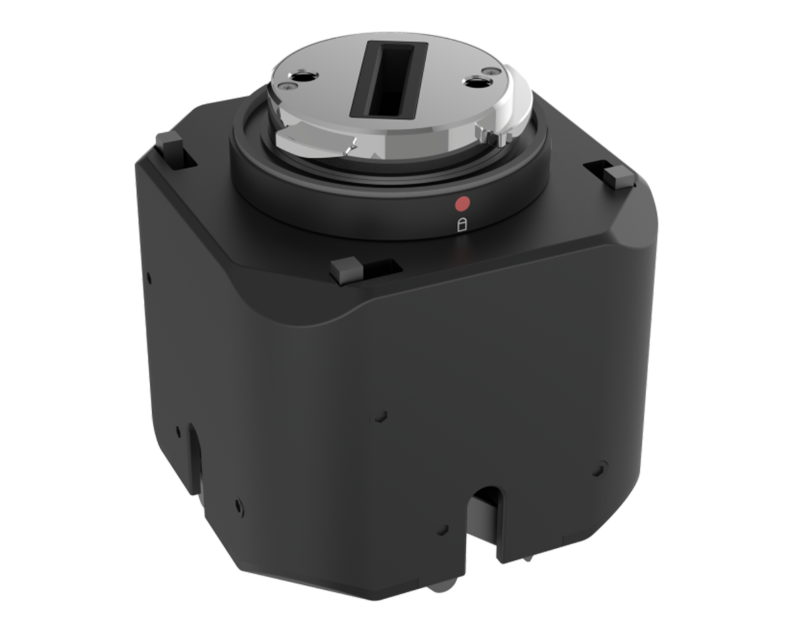

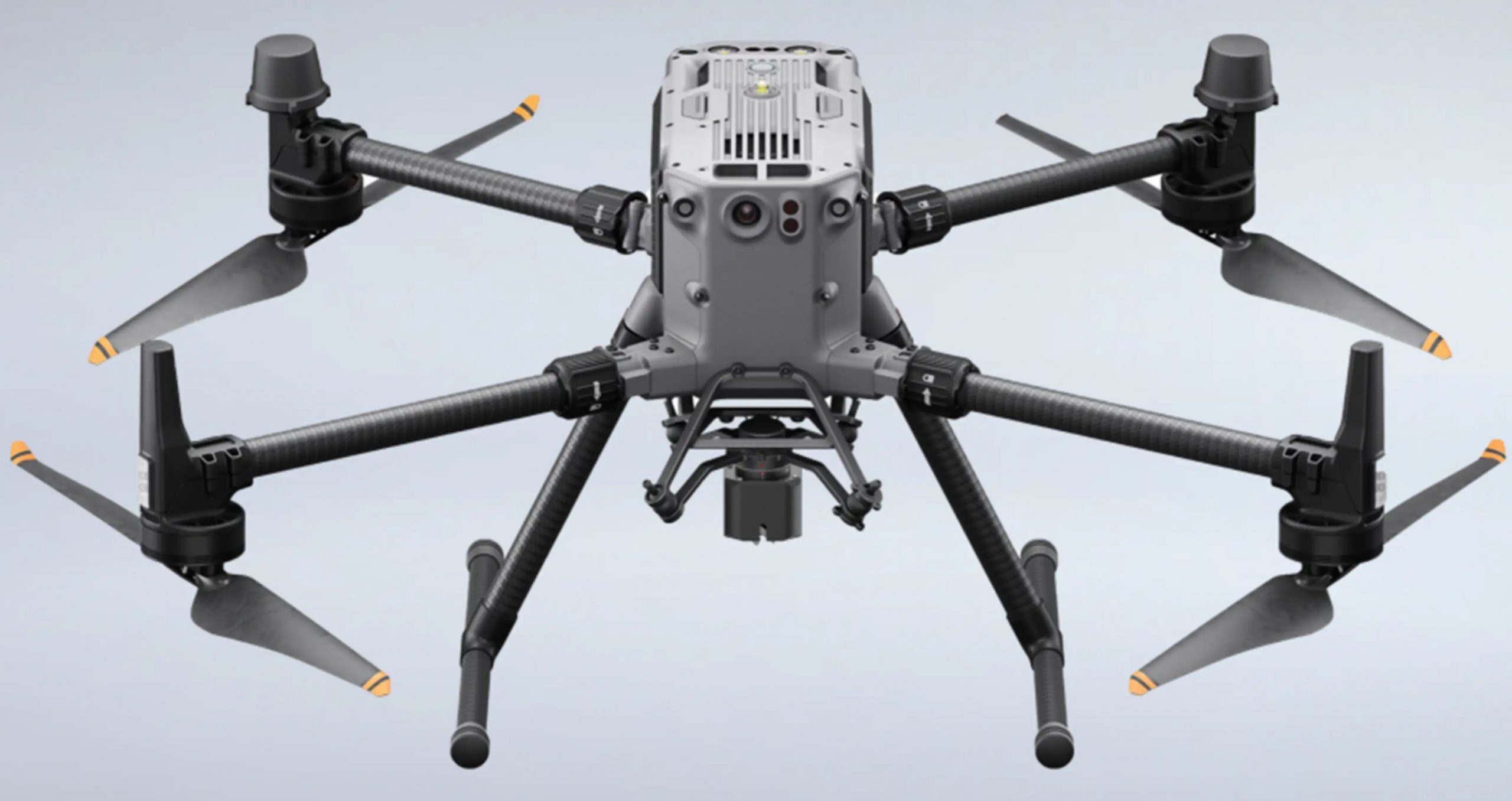

The JZ_PTS4 VISUAL DROP KIT is a multi-functional airdrop device developed based on the new DJI PSDK. It is compatible with DJI gimbal components and can be used on DJI Matrice 350 RTK and DJI Matrice 300 RTK.

Category

The JZ_PTS4 VISUAL DROP KIT is a multi-functional airdrop device developed based on the new DJI PSDK. It is compatible with DJI gimbal components and can be used on DJI Matrice 350 RTK and DJI Matrice 300 RTK. It features a full-metal structure design, with a maximum payload weight of 10kg for a single hook, and a lightweight body weighing only 210g, offering excellent weight ratio. Additionally, the PTS4 integrates a full-function camera and four sets of airdrop hooks that can be used in any order. Using DJI Pilot 2 control, users can view the mounting status in real-time, accurately aim at the target through high-definition image transmission, and easily drop items with a gentle touch.

Mount Detection

Four mounting positions, no order, automatic identification of mounting positions, DJI Pilot 2 real-time display of each position mounting status.

Drop at Will

Control independent delivery with DJI Pilot 2, unlimited sequence, i.e. point-to-point delivery. It can also be used with one click, efficient and fast.

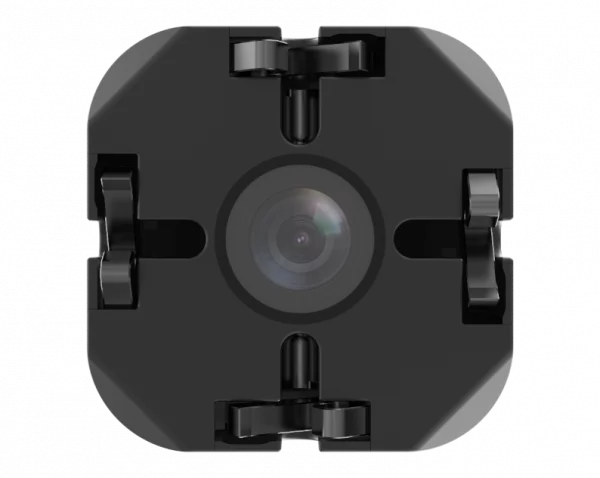

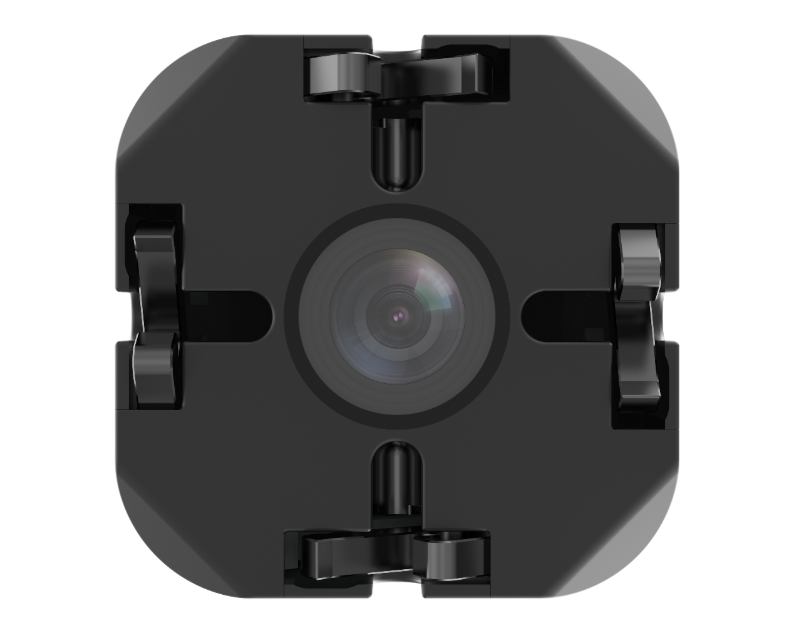

Full Function Camera

Integrated full-function camera, can take photos and video playback, real-time 1080P image transmission is convenient to aim at the target, to achieve accurate delivery.

Maximum Load

Full shell alloy structure, more stable mounting, maximum weight up to 40kg.

  • Mount Quantity – 4 Paragraphs
  • Hanging Weight – 10kg
  • Photo Camera – 1080P
  • Control Mode – DJI Pilot 2
Category:
  • electrical interface
  • DJI SkyPort V2
  • size
  • 58 x 58 x 54 mm
  • weight
  • 135g
  • Compatible Models
  • M350 RTK
    M300 RTK (note: can be downgraded to support D
  • rating
  • 10W
  • Number of mounts
  • 4 paragraphs
  • Individual mounting weight
  • Maximum 3kg, actual weight is subject to aircraft load
  • gross vehicle weight
  • Maximum 12kg, the actual aircraft load shall prevail
  • drop-in function
  • Single-point drop, one-button full drop
  • coding format
  • h264
  • Installation
  • Gimbal Interface Quick Release
  • camera function
  • Photo taking, video recording, video playback, video downloading
  • Image transmission distance
  • Consistent with drone mapping
  • operating temperature
  • -10 °C to 50 °C
  • Storage temperature
  • -20 ℃ to 60 ℃
