JZ T10 MATRIX LAMP

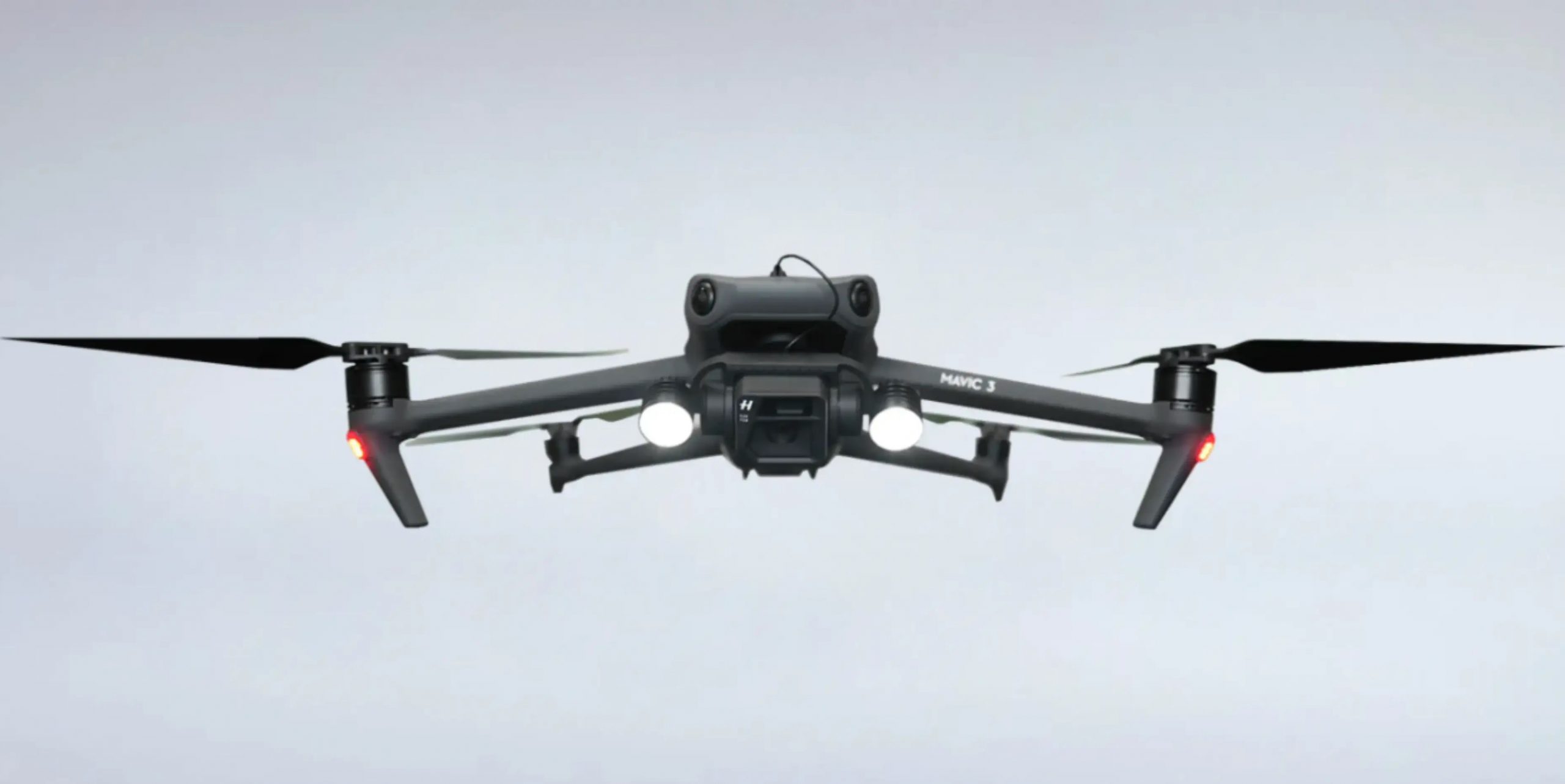

The JZ T10 MATRIX LAMP, designed for DJI consumer drones. Using the same laser lamp bead and aspherical quartz concentrating lens of luxury car laser headlamps, combined with Fresnel plane lens, converging 14° sharp light column, effective lighting distance of 100m.

Category

The JZ T10 MATRIX LAMP, designed for DJI consumer drones. Using the same laser lamp bead and aspherical quartz concentrating lens of luxury car laser headlamps, combined with Fresnel plane lens, converging 14° sharp light column, effective lighting distance of 100m. The whole machine weighs only 20 grams, the original digital mode is precisely leveled, and the center of gravity of the gimbal is not changed after installation. Built-in efficient constant current driver and induction switch, remote switch and switch mode without additional control link. Otg-powered, no external battery required for battery life and flight safety.





Lighting

Control the gimbal camera, adjust the attitude Angle, control the lighting status and mode switching.

Power Supply

Real machine die opening, injection plug, OTG powered, no external battery required.

Gimbal

Reuse the camera gimbal, increase the shaft stability function, adjust the Angle of lighting.

  • Lighting Distance – 100m
  • Spotlight Lighting – 14°
  • Weight – 20g
  • Power Supply Mode – OTG
Category:
  • size
  • 110 x 28 x 33 mm
  • weight
  • 20g
  • Lighting Method
  • Always On, Flashing
  • rating
  • 10W
  • Compatible Models
  • DJI consumer drones
  • Lighting Angle
  • 14°
  • Lighting distance
  • 30m

    50m

    100m
  • Center Illumination
  • 22Lux

    8Lux

    2Lux
  • Installation
  • snap fastener
  • operational control
  • Gimbal Control
  • operating temperature
  • -10 °C to 50 °C
  • Storage temperature
  • -20 ℃ to 60 ℃
