JZ U3 SPEAKER & SPOTLIGHT SYSTEM

The JZ U3 SPEAKER & SPOTLIGHT SYSTEM is a powerful device that integrates voice and lighting functions. The device has 30W of lighting power while weighing only 181g, which is very lightweight. The U3 features a 14° concentrated lighting design that can provide more than 24Lux illumination over a distance of 50 meters.

Category

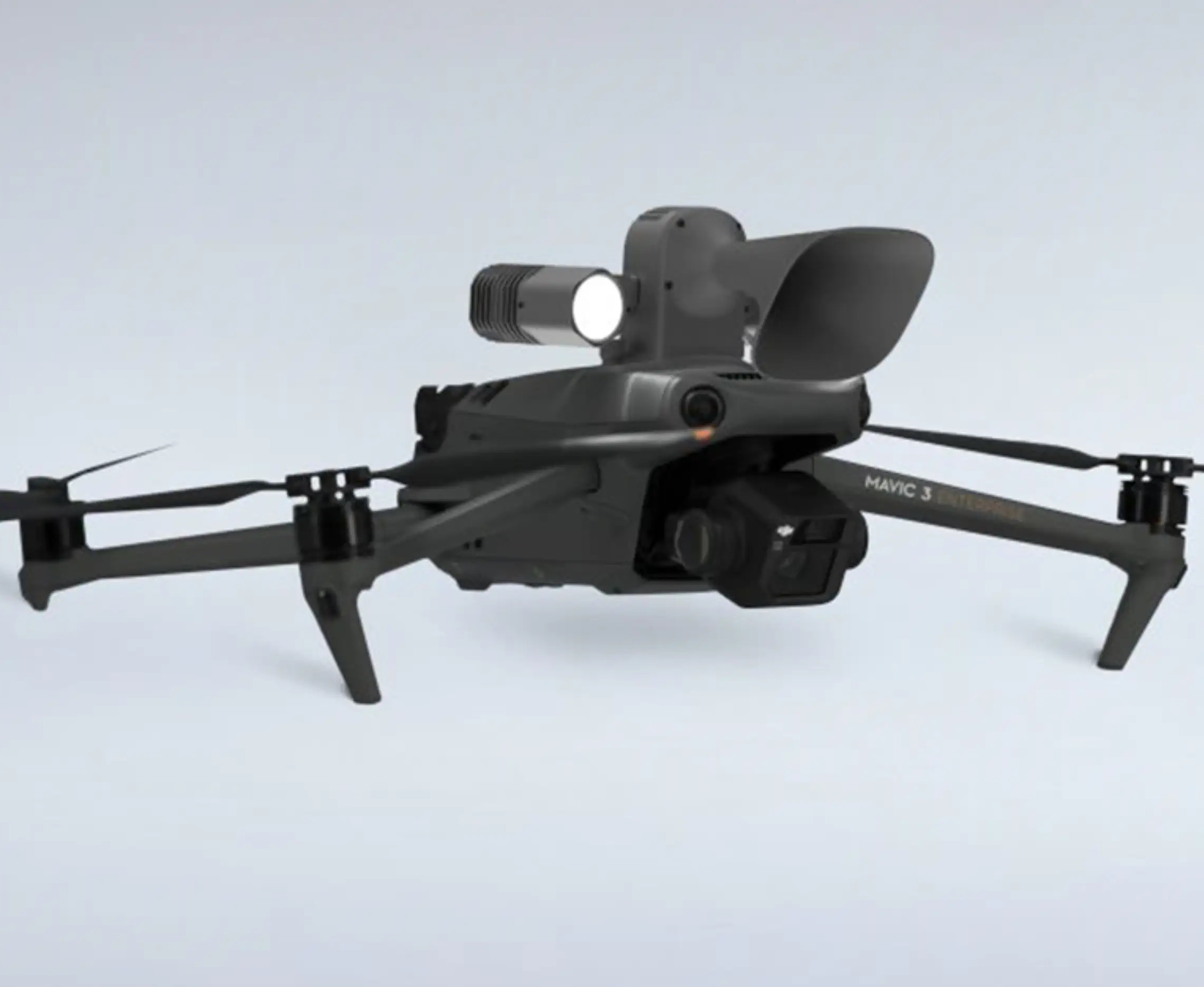

The JZ U3 SPEAKER & SPOTLIGHT SYSTEM is a powerful device that integrates voice and lighting functions. The device has 30W of lighting power while weighing only 181g, which is very lightweight. The U3 features a 14° concentrated lighting design that can provide more than 24Lux illumination over a distance of 50 meters. It is equipped with a single axis increased stability gimbal, support camera gimbal linkage, can achieve stable shooting and lighting effects. The TTS text Shouting device can reach the sound pressure level of 114dB at one meter, and the effective broadcasting distance is more than 300 meters, which can realize long-distance voice broadcasting. At the same time, the U3 is adapted to the DJl Mavic 3 industry series and fully supports the control and management of the DJI Pilot 2. In summary, the U3 SPEAKER & SPOTLIGHT SYSTEM has powerful lighting power and loudspeaker function. Its portability, stability and long broadcast distance make it play an important role in a variety of application scenarios. Whether for night search and rescue, emergency broadcasting or other lighting and voice needs, the U3 provides high-quality solutions.

Lighting

Support one-button switch, brightness adjustment, burst brightness and burst frequency adjustment

TTS Text Play

Support text to voice playback function, with multi-language support, including Chinese, English and local dialects.

Audio Playback

Built-in 32GB storage, users can directly connect to the computer via USB audio copy. It also supports the DJI Pilot 2 audio upload function for convenient audio management.

Controllable Gimbal

Support gimbal 0° to -90°, support gimbal and camera linkage

  • Broadcast Distance – 300m
  • Sound Pressure Level at 1 Meter for Text Playback – 114dB
  • Spotlight Lighting – 14°
  • Lighting Distance – 150m
Category:
  • electrical interface
  • DJI SDK
  • size
  • 141.5 x 131.5 x 60 mm
  • weight
  • 181g
  • TTS sound pressure at one meter
  • 114dB
  • Compatible Models
  • M3 Industry
  • Protection level
  • IP4X
  • broadcast distance
  • 300m
  • Maximum power consumption
  • 30W
  • Shouting Methods
  • DJI Pilot 2
  • Installation
  • screw quick release
  • Lighting Method
  • Combined lighting
  • spruce
  • Single Axis Stabilized Head
  • Lighting Angle
  • 14°
  • operating temperature
  • -10 °C to 50 °C
  • Storage temperature
  • -20 ℃ to 60 ℃
  • Lighting distance
  • 50m
    100m
    150m
  • Lighting area
  • 113m²
    471m²
    1063m²
  • Center Illumination
  • 24Lux
    5.8Lux
    2.5Lux
