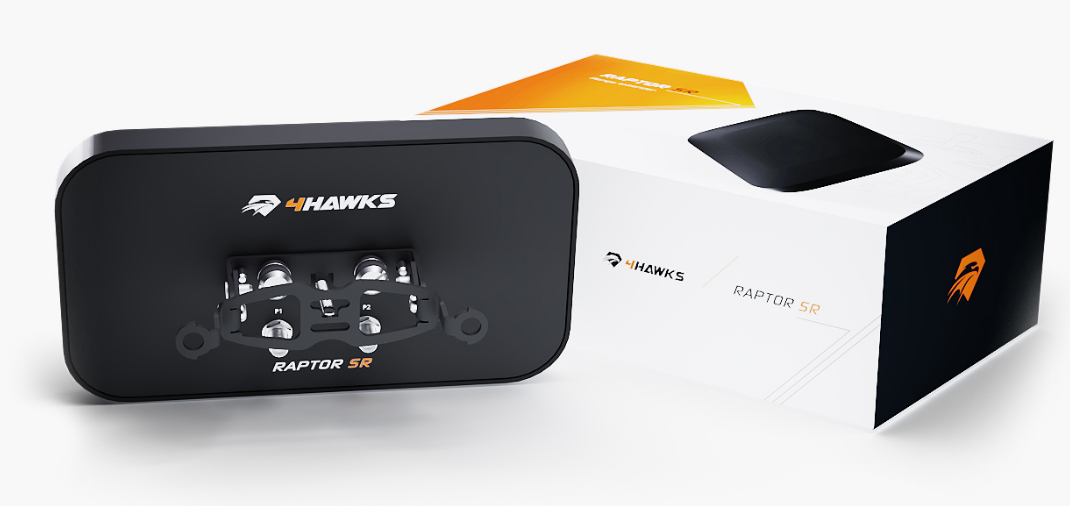

Raptor SR Designed for DJI Spark

Features:

  • Concurrent dual band 2.4 & 5GHz
  • No modification to the drone itself
  • Long range extension without external boosters
  • Design does not contain any removable parts

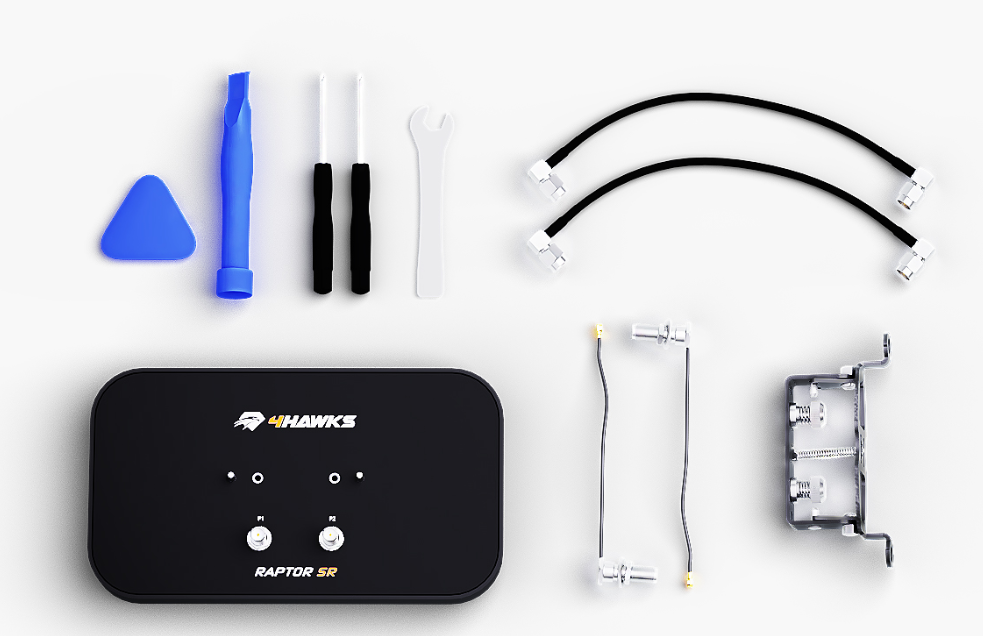

  • Complete solution

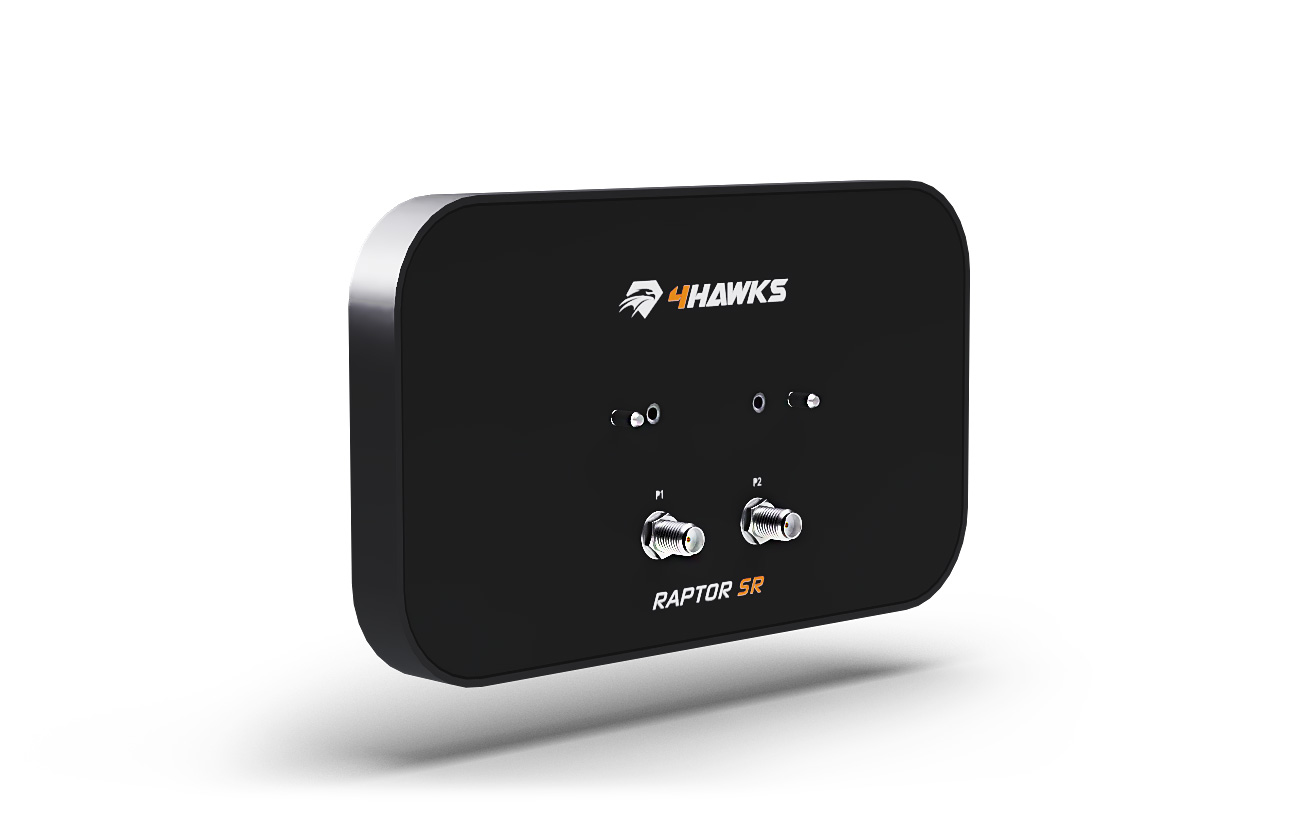

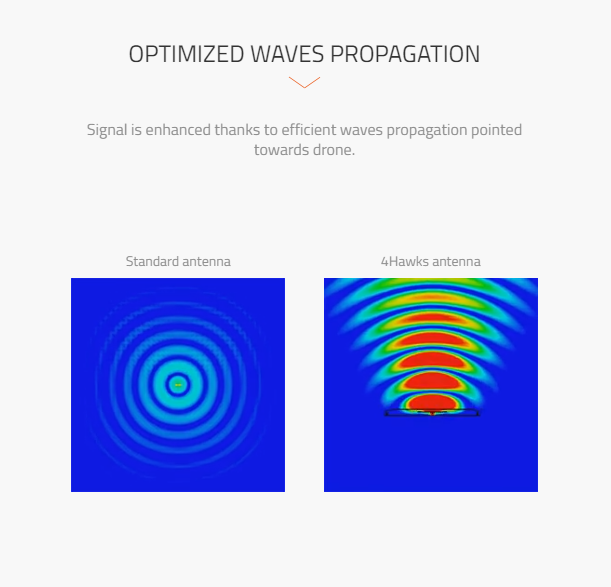

With 4Hawks range extender, which significantly increases the signal strength as well as reduces the noise due to oblique polarization, it is now possible to reach places you could never reach before with your drone! 4Hawks antenna for DJI Spark model is highly advanced, operating in both 2.4GHz as well as 5GHz frequencies with 8 and 10 dBi gain. The concept behind the look of the antenna was to keep the main merits of Dji Spark, which is its compact size. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. Mounting is made of stainless steel for rock solid stability.

Features:

  • Concurrent dual band 2.4 & 5GHz
  • No modification to the drone itself
  • Long range extension without external boosters
  • Design does not contain any removable parts
  • Complete solution

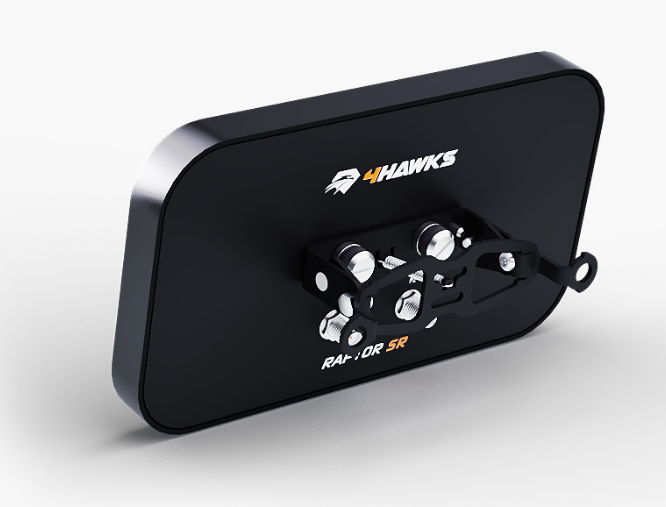

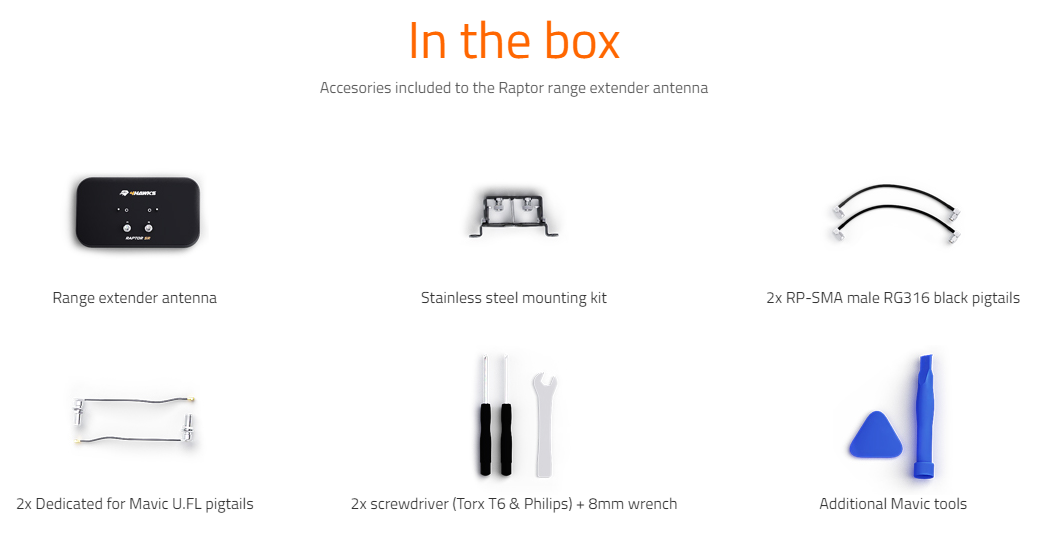

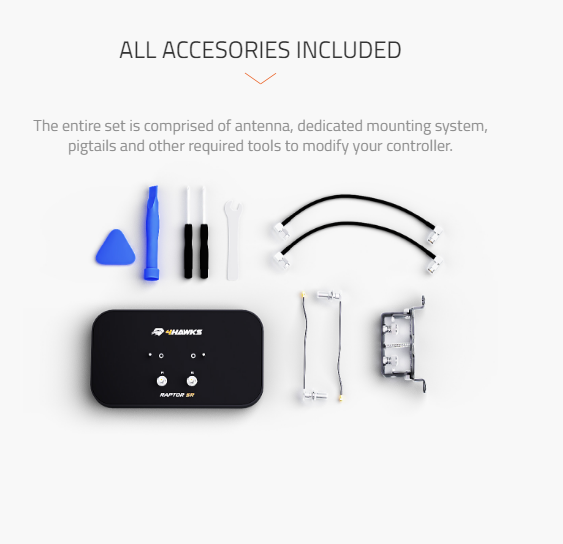

Mounting the range extender leads to permanent changes with the remote controller. The entire set is lightweight and uniform (without any loose equipment pieces). Changing the direction of the antenna shouldn’t cause any difficulties, as the system was designed in a way that allows quick position change with just a single “click”. This way you can be sure that you do not lose the connection with your drone.

Specification

electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies
Port 1:   2.40 – 2.50 GHz & 5.00 – 5.80 GHz
Port 2:   2.40 – 2.50 GHz & 5.00 – 5.80 GHz
Gain
Port 1:   8 dBi  (+/- 1 dBi) & 10 dBi  (+/- 1 dBi)
Port 2:   8 dBi  (+/- 1 dBi) & 10 dBi  (+/- 1 dBi)

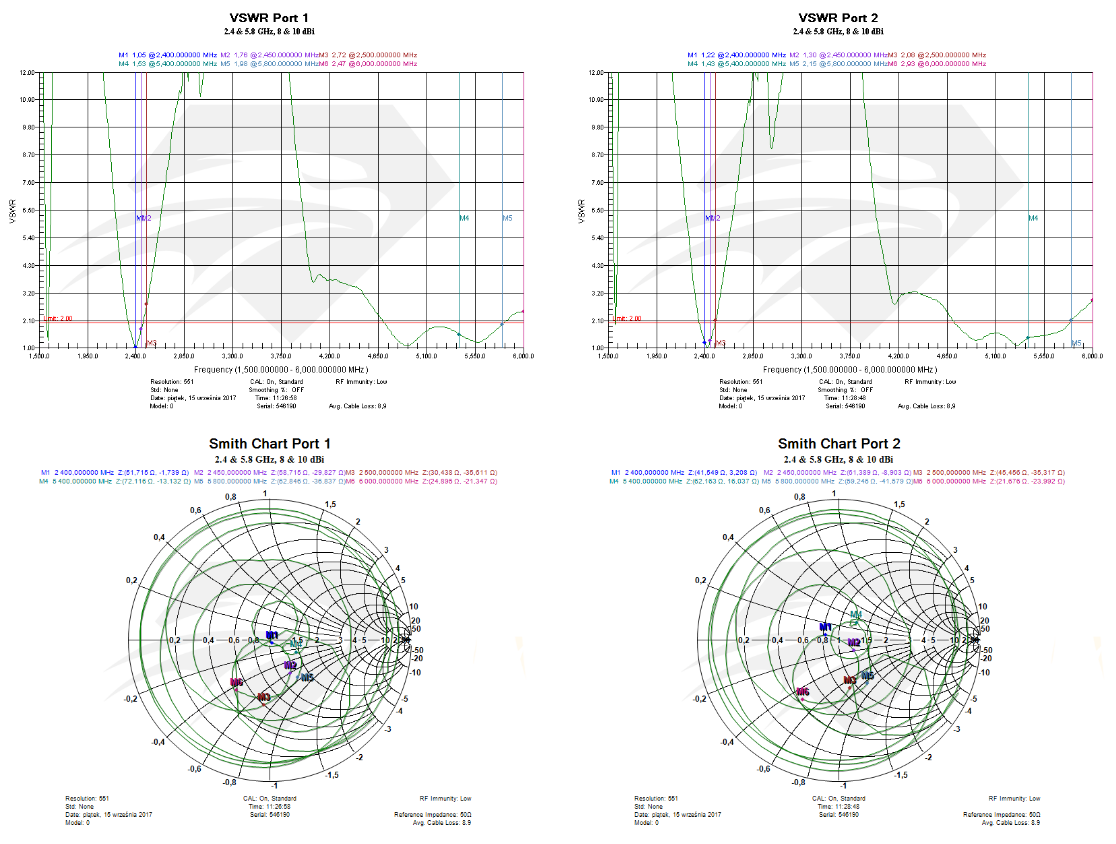

VSWR
Port 1:   < 1.50  (max. < 2.15)
Port 2:   < 1.50  (max. < 2.15)

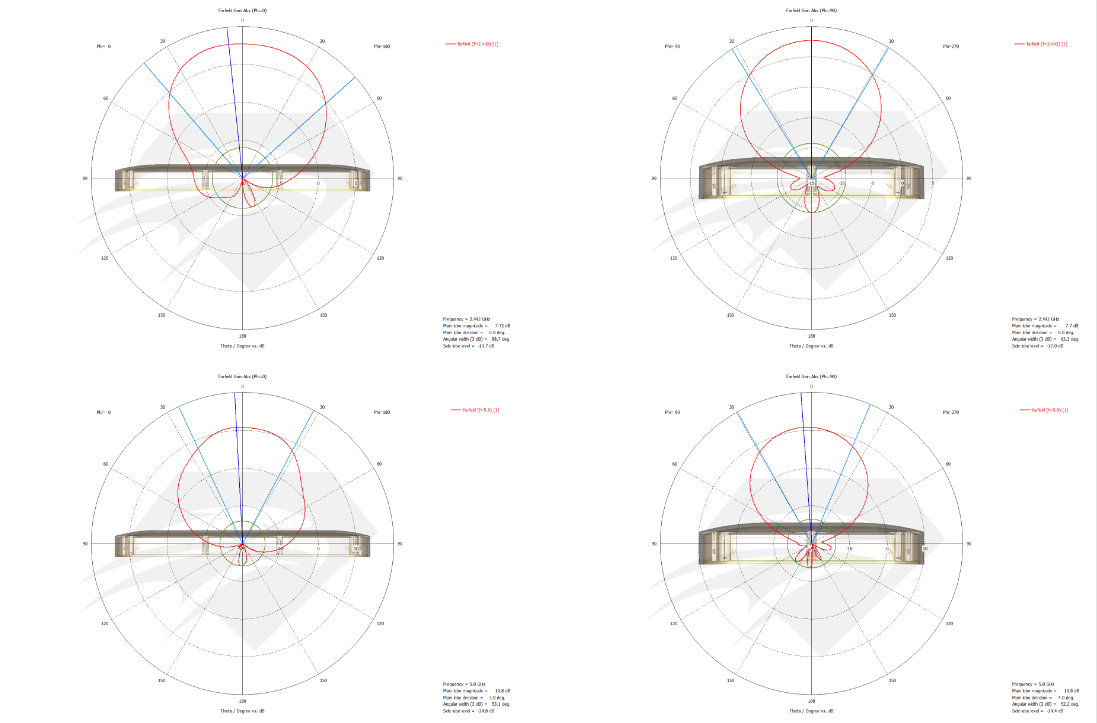

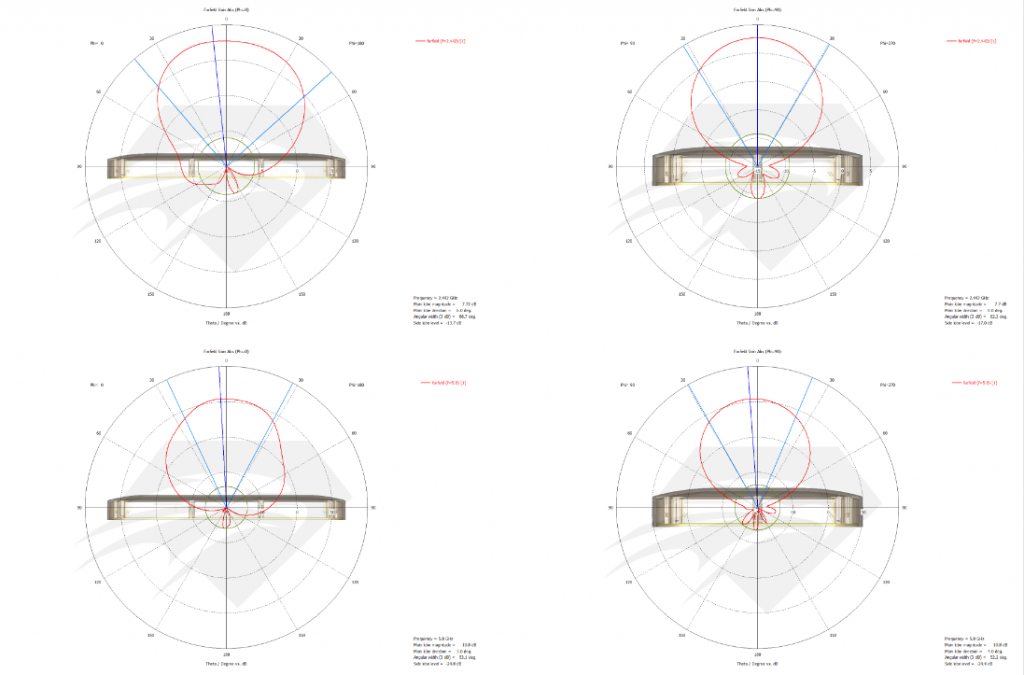

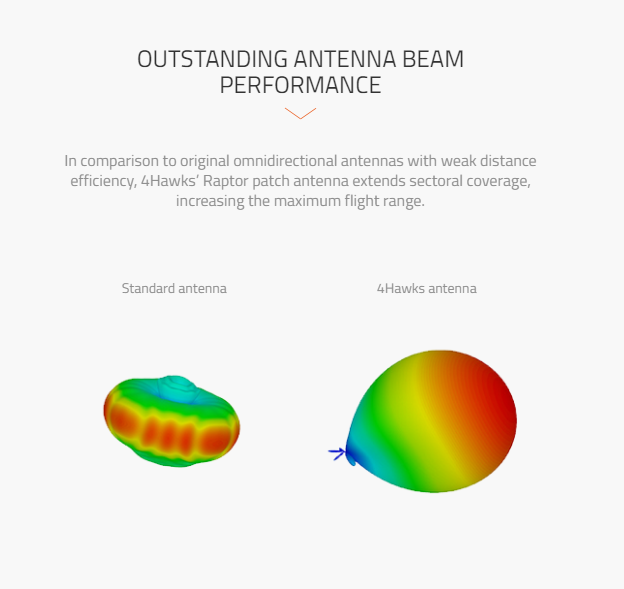

Beamwidth
Port 1:   90°/65° & 55°/55°
Port 2:   90°/65° & 55°/55°
Polarization
Port 1:   Vertical
Port 2:   Vertical
Impedance
Port 1:   50 Ω
Port 2:   50 Ω

Mechanical parameters

Material
Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting:   Stainless steel + paint
Weight
~ 180g (110g Antenna + 70g Mounting)
Dimensions
16.1 x 9.1 x 1.7 cm
6.34 x 3.60 x 0.67 inch
Connection
Port 1:   RP-SMA female
Port 2:   RP-SMA female

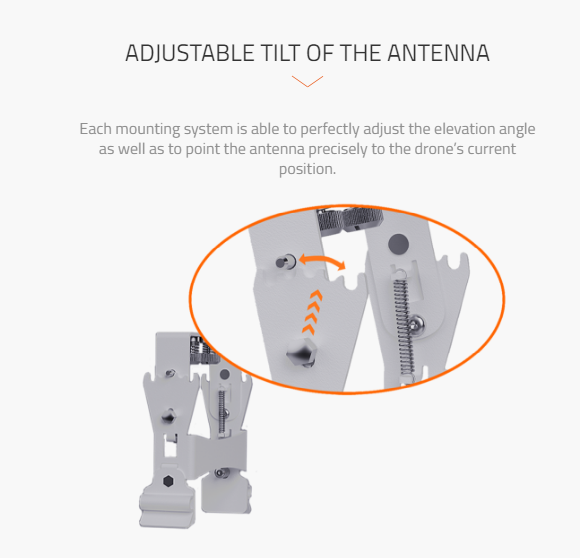

Tilt adjustment
5 tilt positions, OnClick system
Mounting type
On SMA connectors (Permanent)
