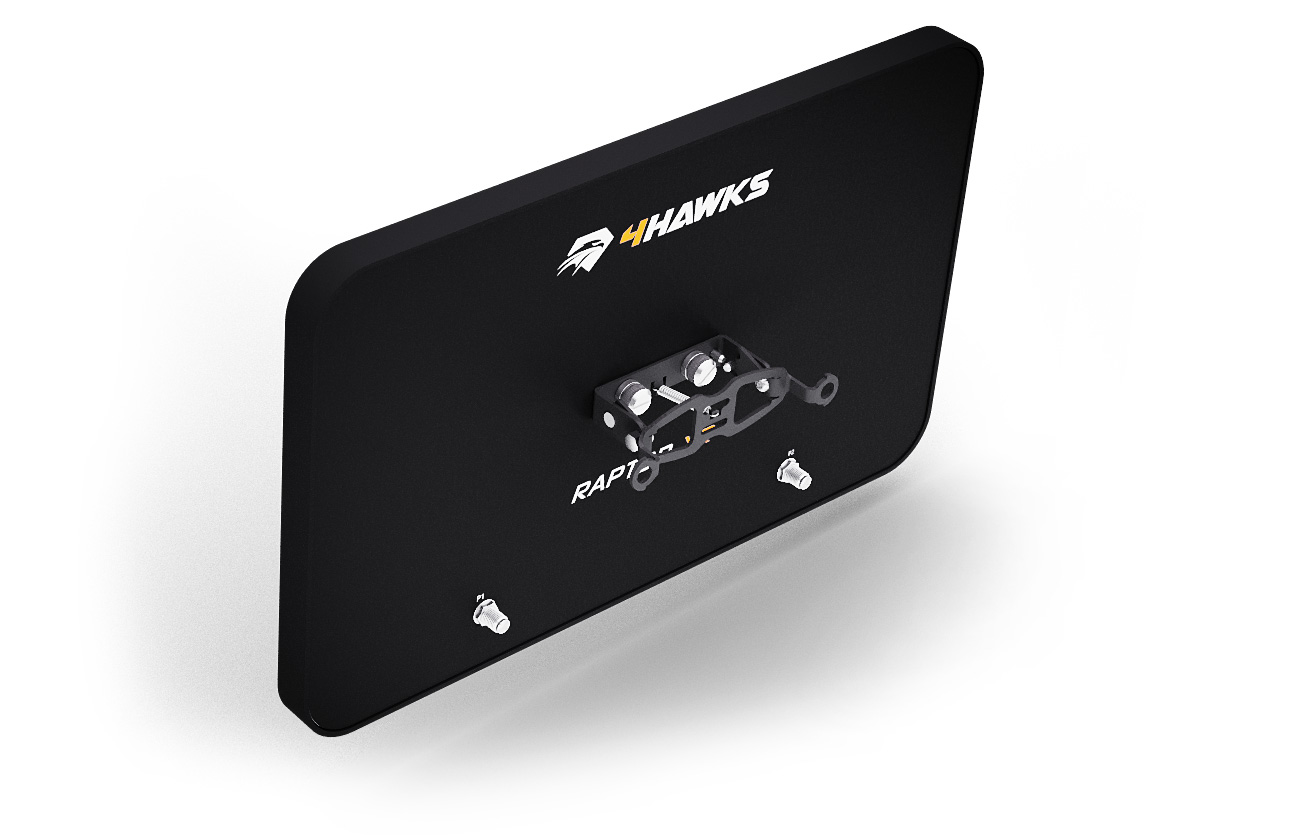

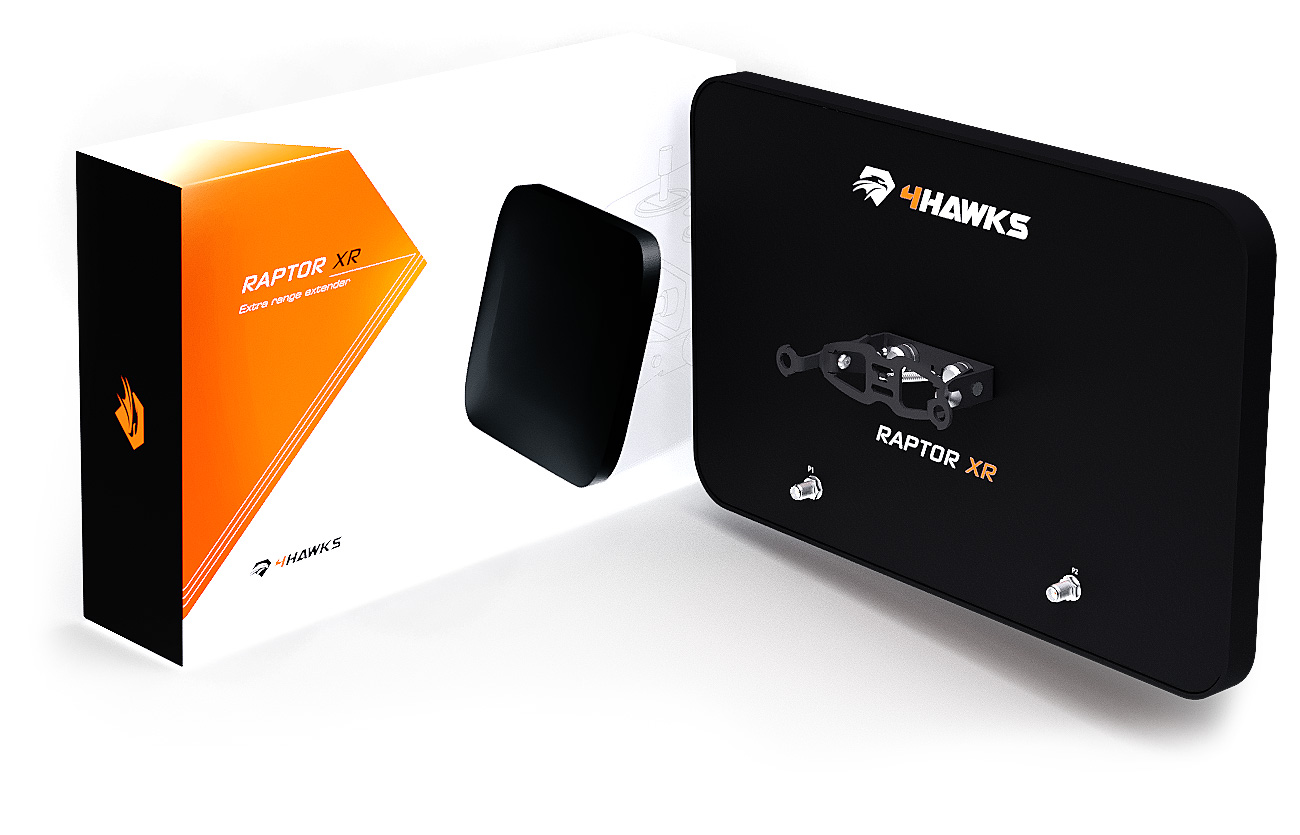

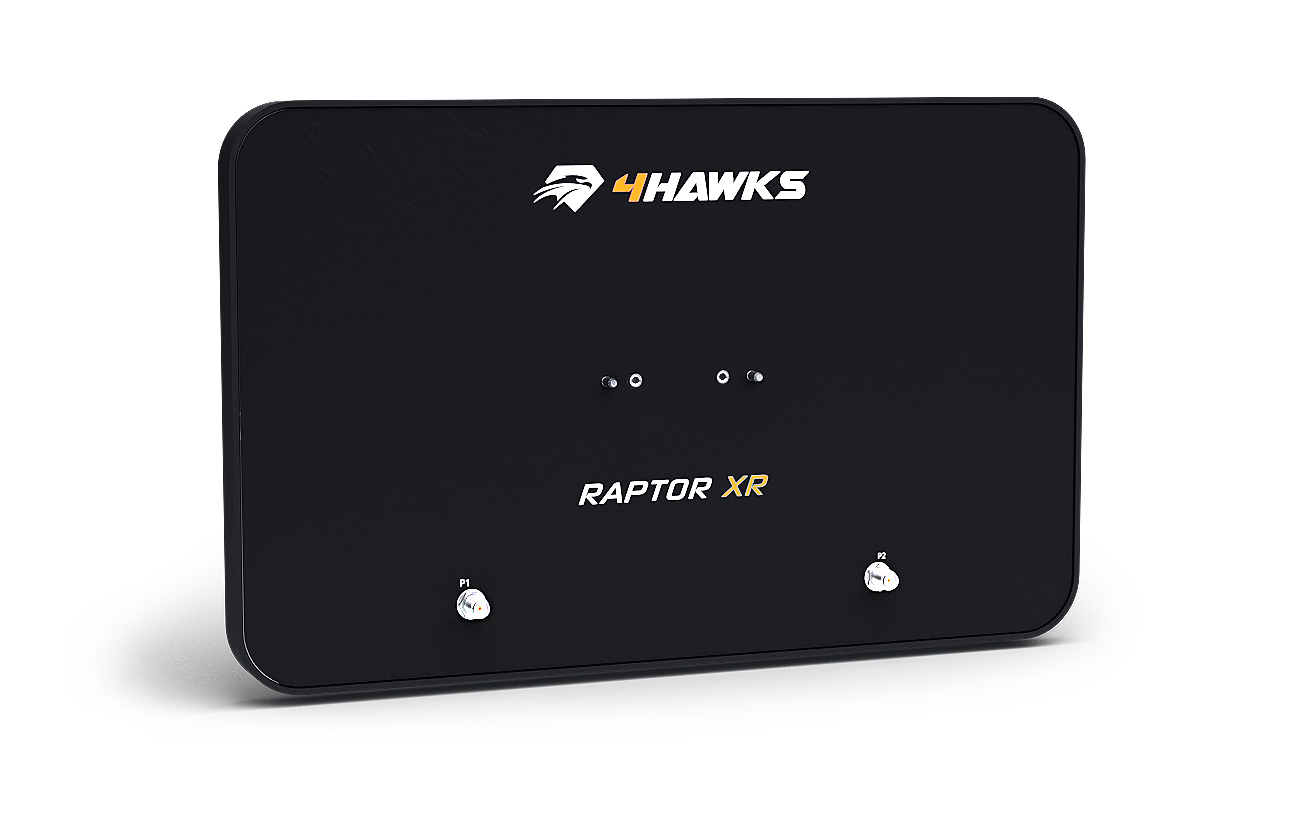

Raptor XR Designed for DJI Mavic

Features:

  • Maximize performance
  • Concurrent dual band 2.4 & 5GHz
  • No modification to the drone itself
  • Long range extension without external boosters
  • Design does not contain any removable parts

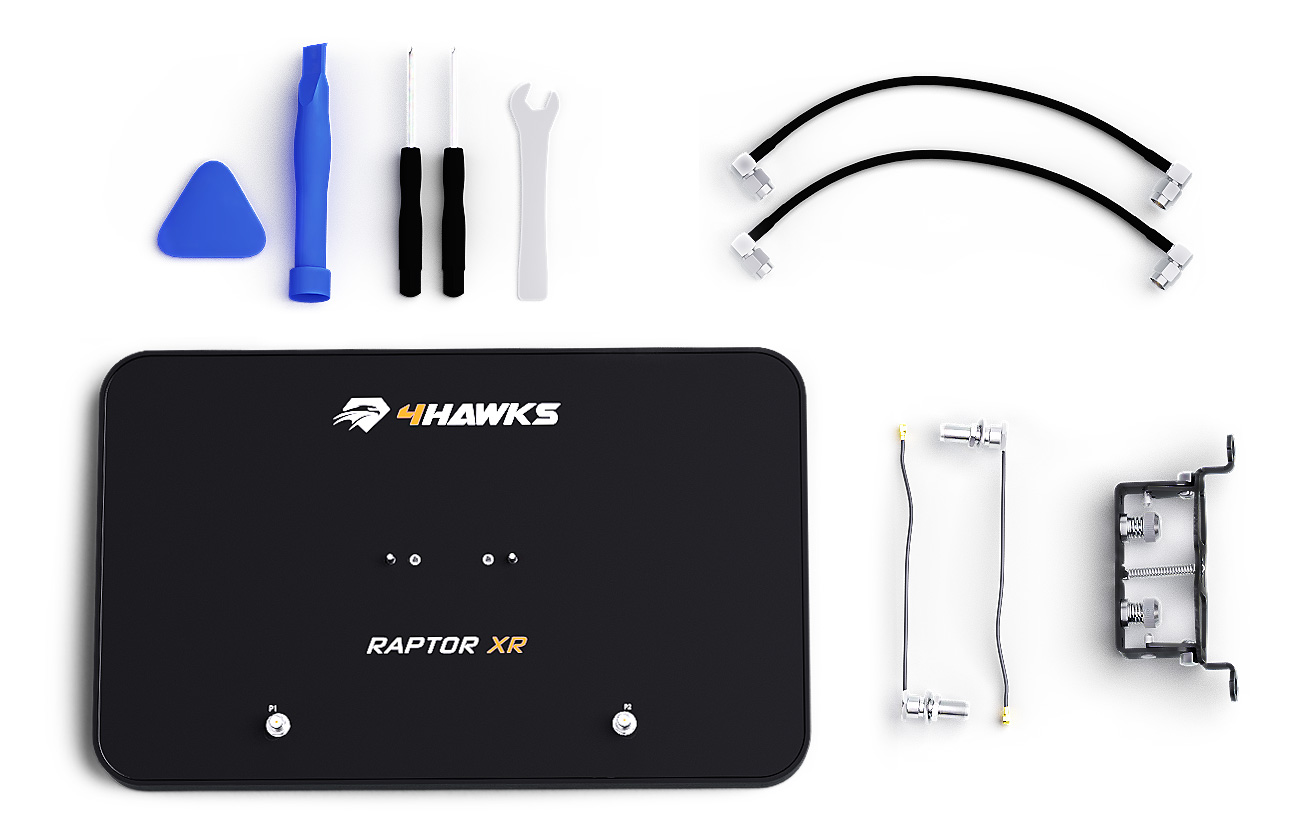

  • Complete solution

Designed for drone enthusiasts, Dji Mavic is perfect for holiday trips. Its long range allows its user to reach places that were earlier completely inaccessible, such as deep forests, canyons, lakes etc. With its fast maximum speed of 65 km/h and flight time of 27 minutes, Mavic fits in well in every situation. The built-in camera allows recording videos in 4k.
4Hawks antenna for Dji Mavic model is highly advanced, operating in both 2.4GHz as well as 5GHz frequencies The concept behind the look of the antenna was to make it look like it was a part of the drone by default. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. Mounting is made of stainless steel for rock solid stability. Mounting the range extender leads to permanent changes with the remote controller. The entire set is lightweight and uniform (without any loose equipment pieces). Changing the direction of the antenna shouldn’t cause any difficulties, as the system was designed in a way that allows quick position change with just a single “click”. This way you can be sure that you do not lose the connection with your drone.

Specification

electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies
Port 1:   2.40 – 2.50 GHz & 5.00 – 5.80 GHz
Port 2:   2.40 – 2.50 GHz & 5.00 – 5.80 GHz
Gain
Port 1:   11 dBi  (+/- 1 dBi) & 14 dBi  (+/- 1 dBi)
Port 2:   11 dBi  (+/- 1 dBi) & 14 dBi  (+/- 1 dBi)
VSWR
Port 1:   < 1.50  (max. < 2.00)
Port 2:   < 1.50  (max. < 2.00)
Beamwidth
Port 1:   70°/40° & 40°/25°
Port 2:   70°/40° & 40°/25°
Polarization
Port 1:   Vertical
Port 2:   Vertical
Impedance
Port 1:   50 Ω
Port 2:   50 Ω

Mechanical parameters

Material
Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting:   Stainless steel + paint
Weight
~ 520g (450g Antenna + 70g Mounting)
Dimensions
29.2 x 18.2 x 2.1 cm
11.50 x 7.16 x 0.83 inch
Connection
Port 1:   RP-SMA female
Port 2:   RP-SMA female
Tilt adjustment
3 tilt positions, OnClick system
Mounting type
On SMA connectors (Permanent)
