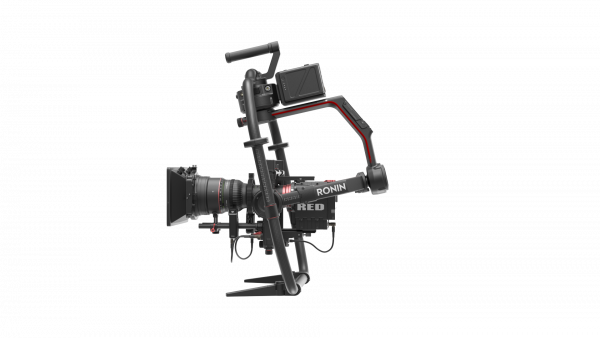

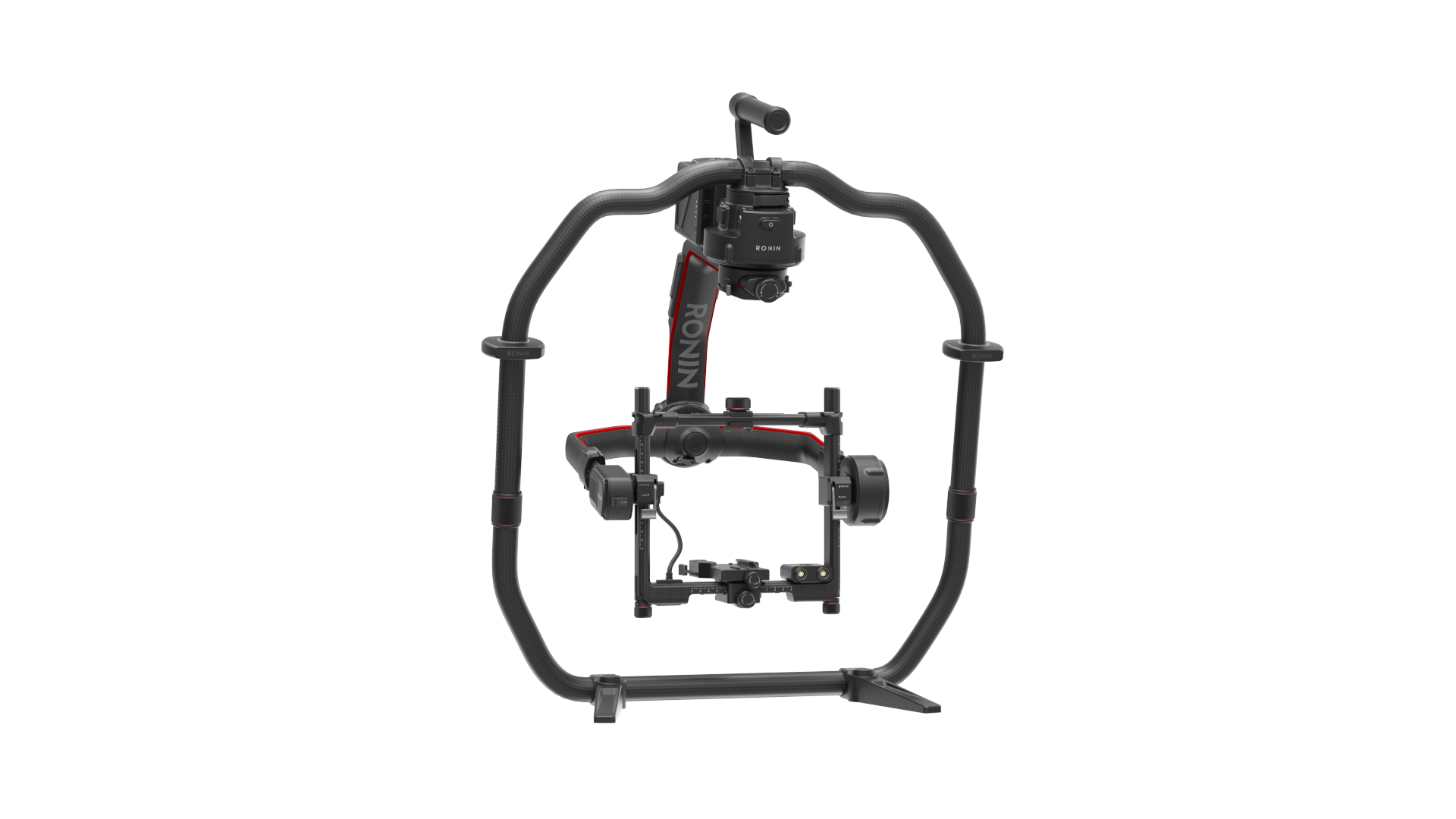

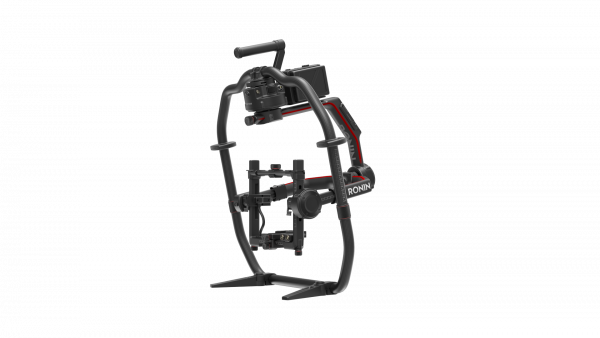

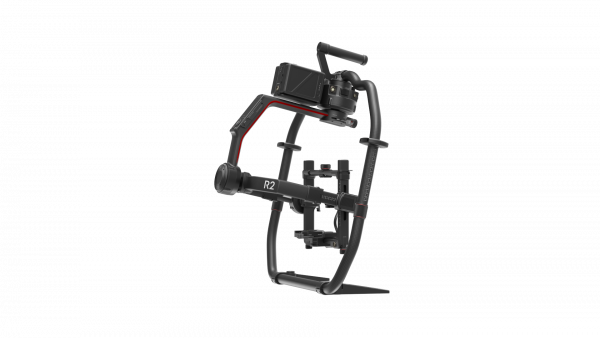

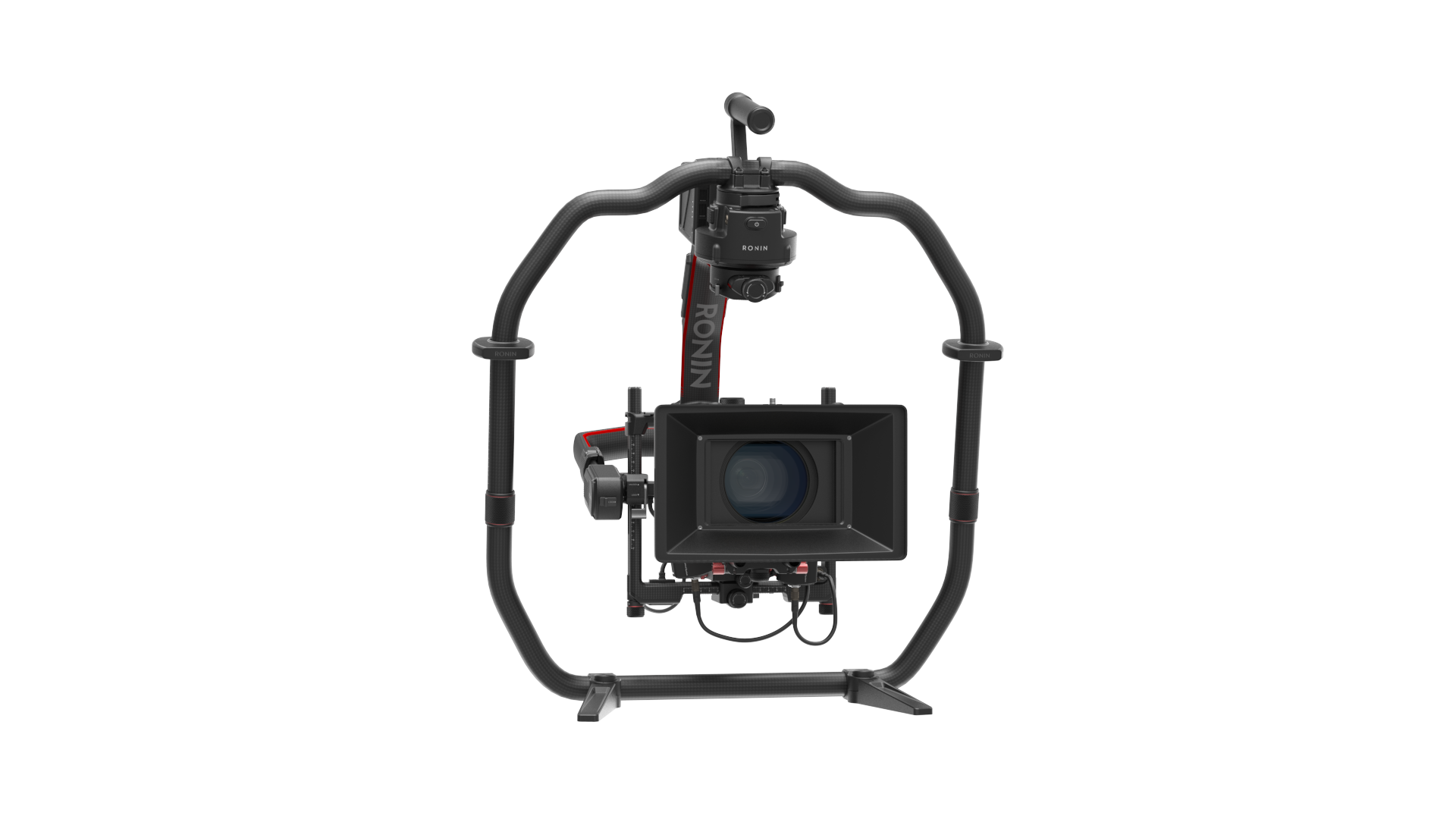

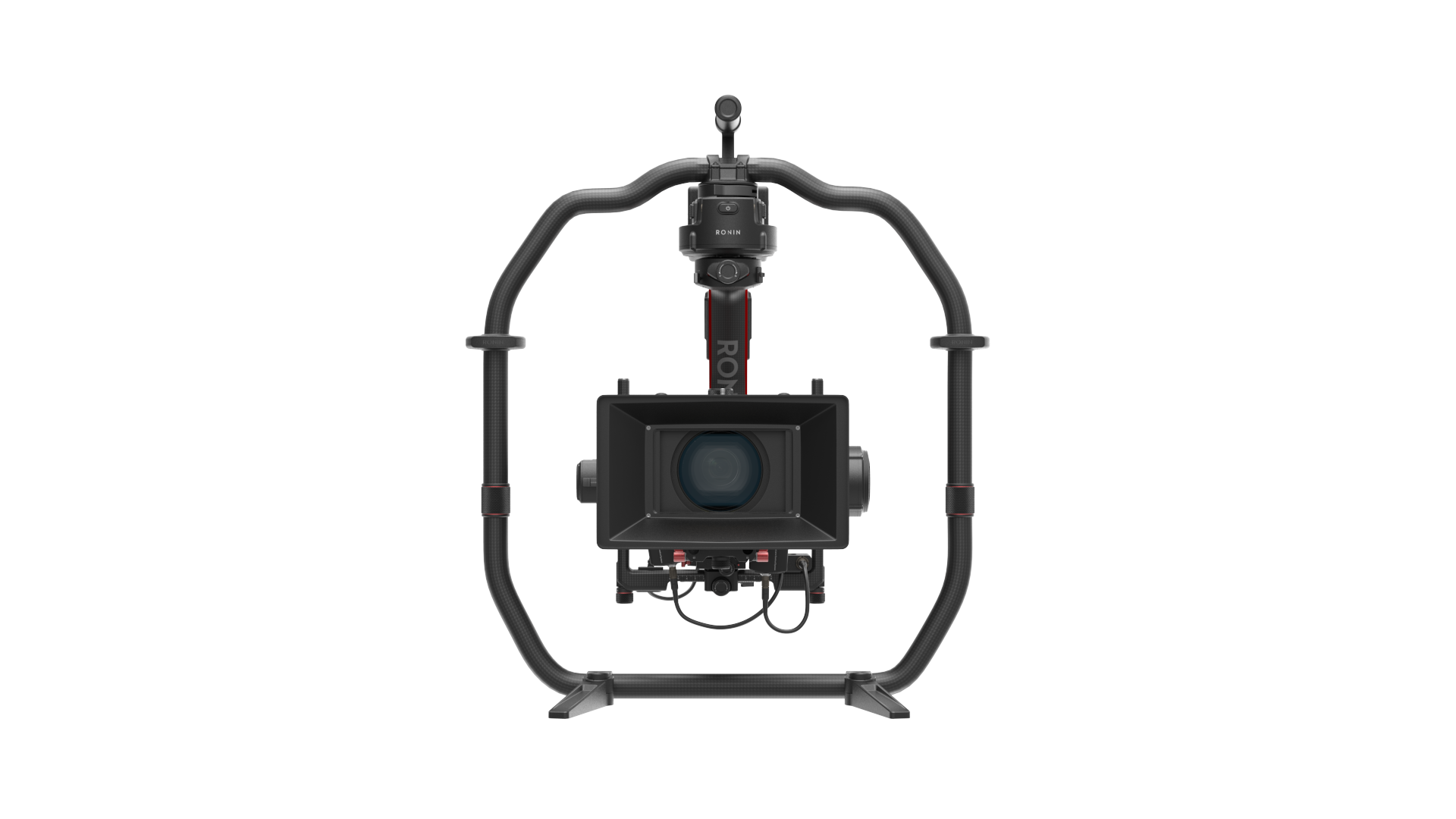

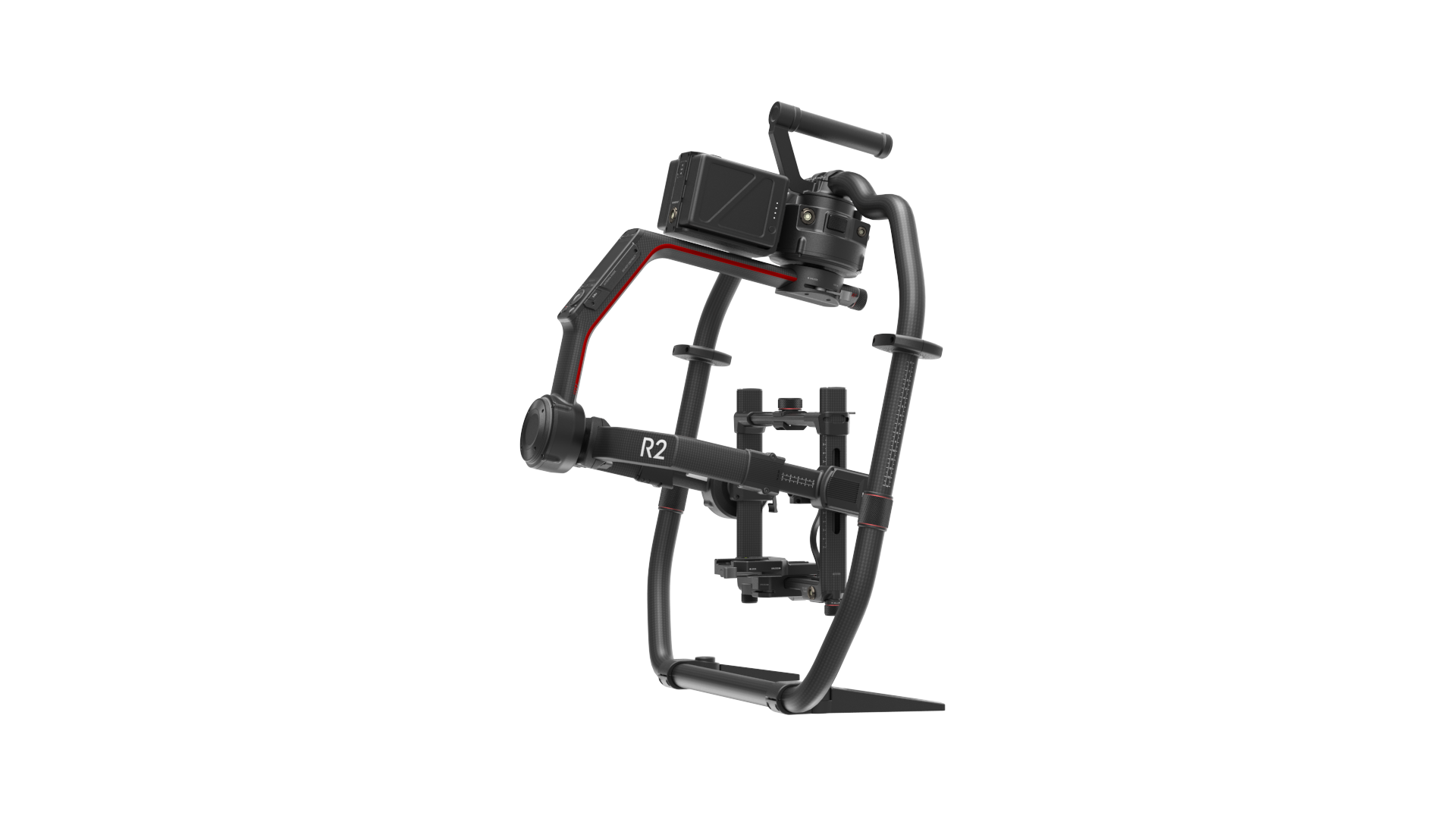

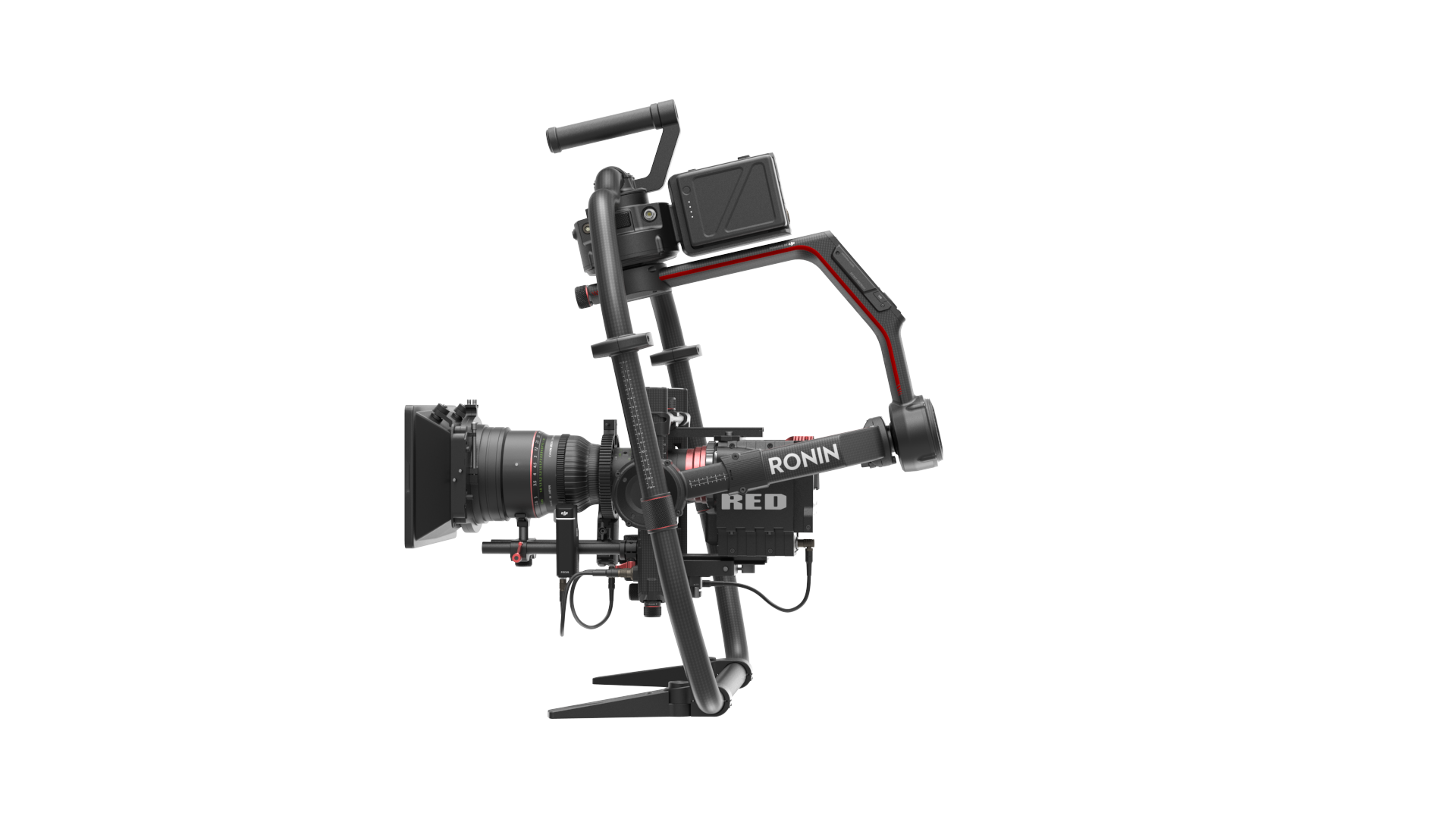

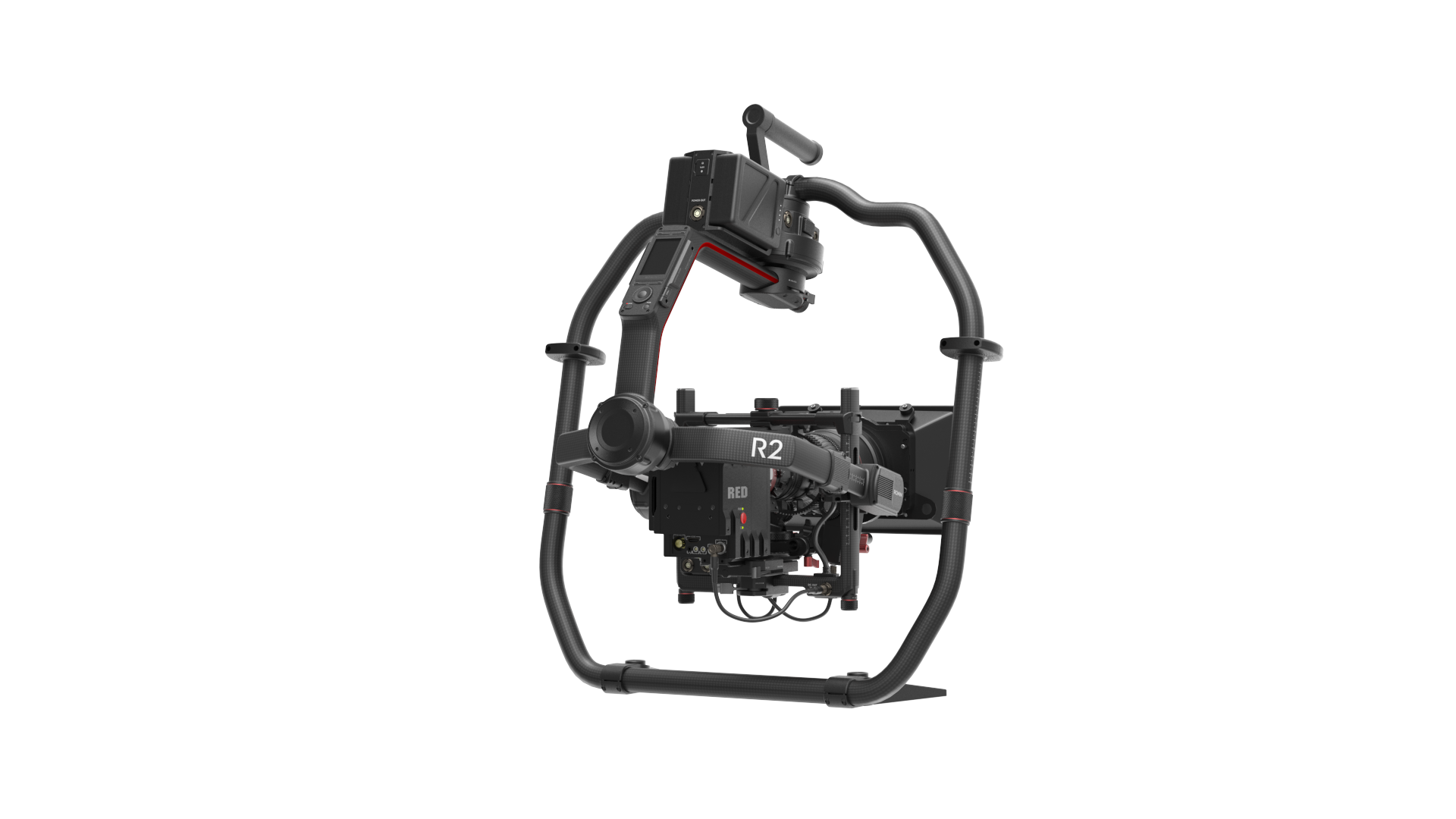

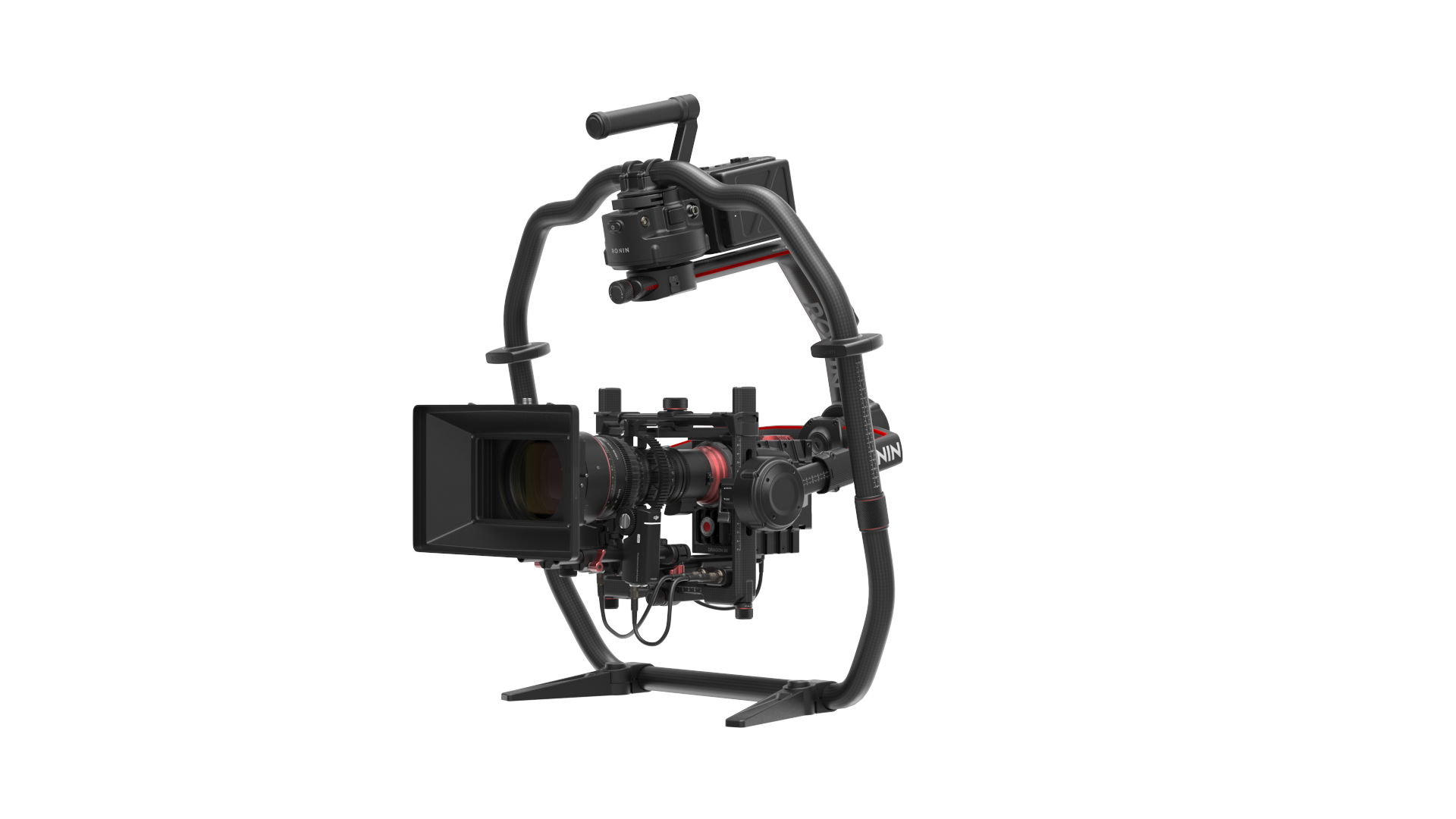

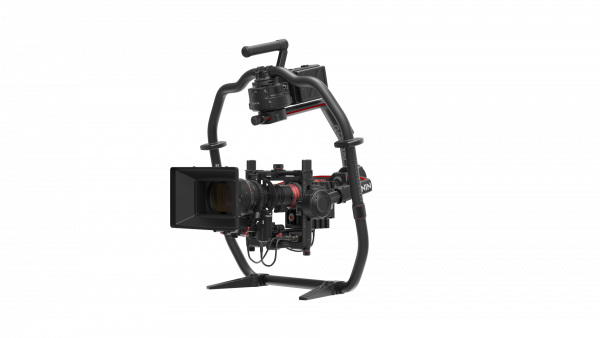

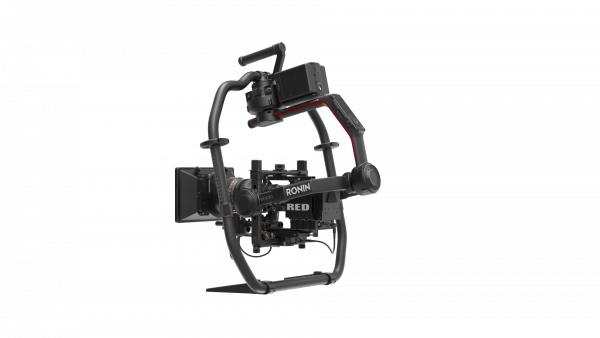

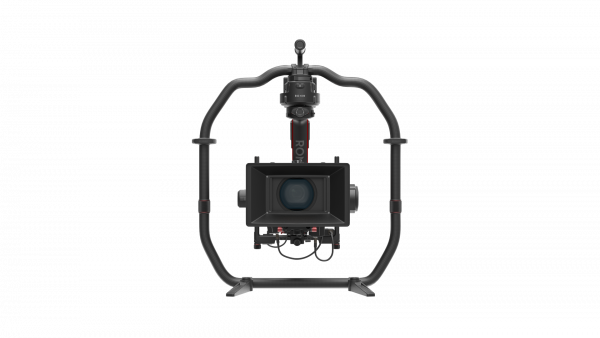

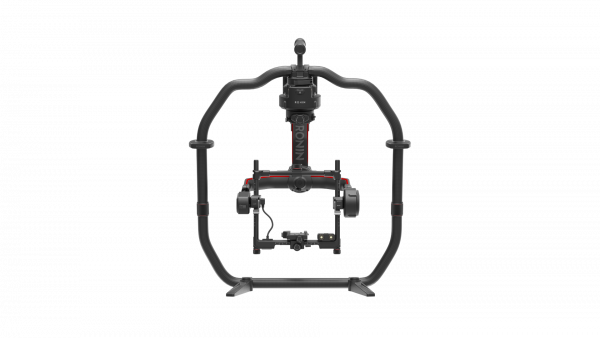

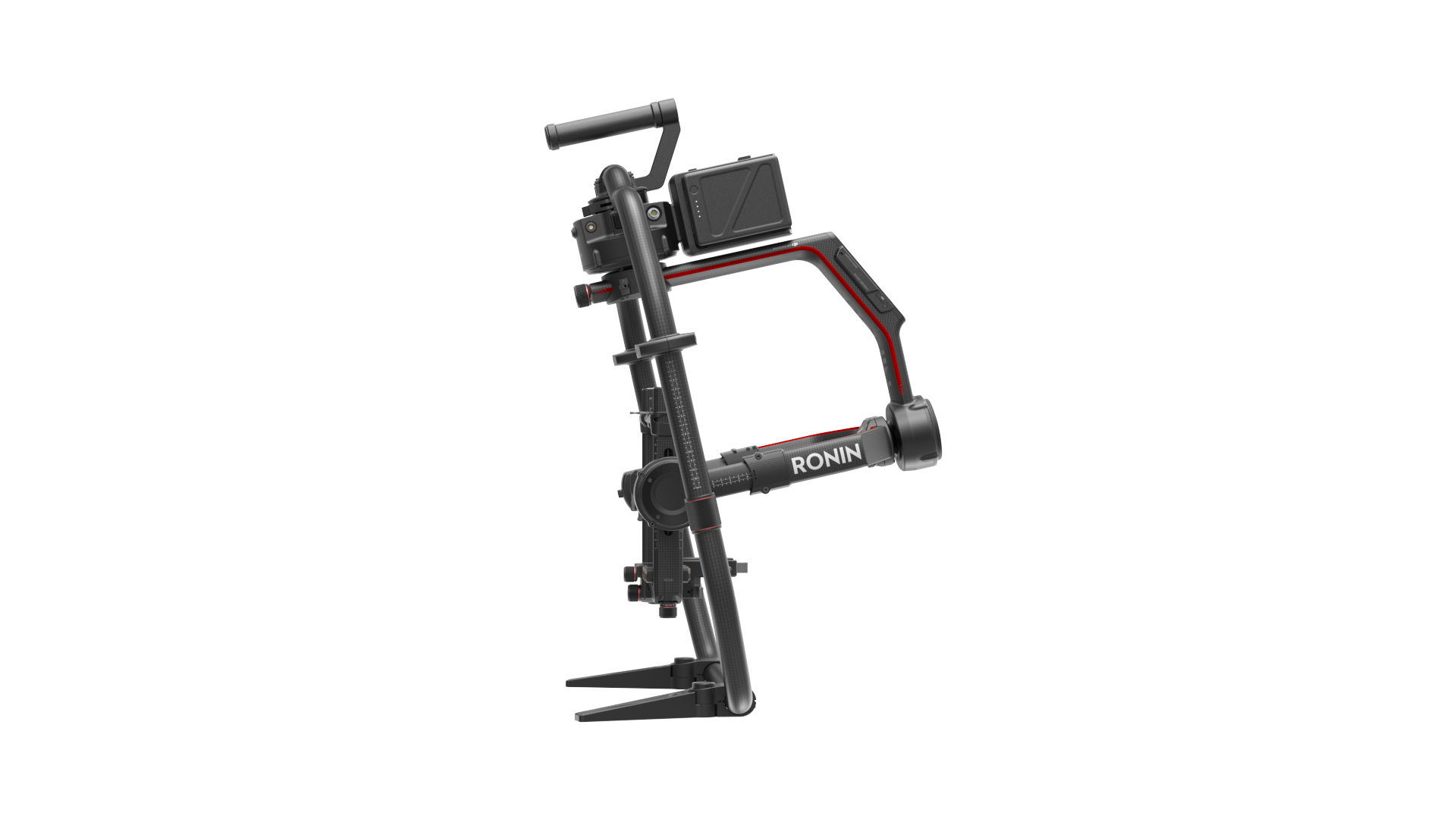

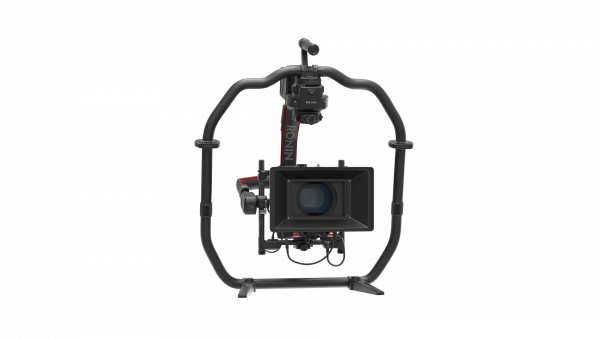

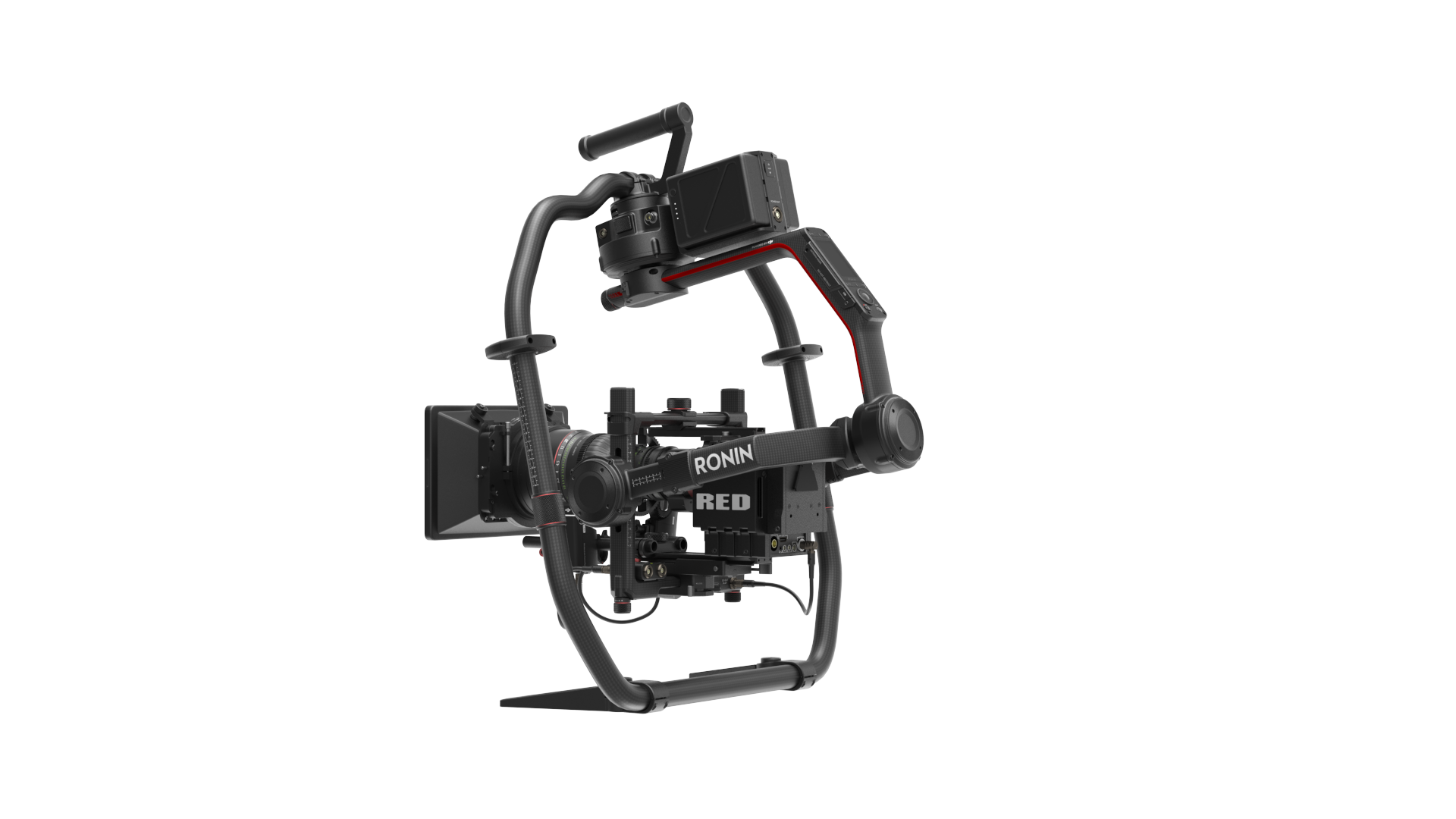

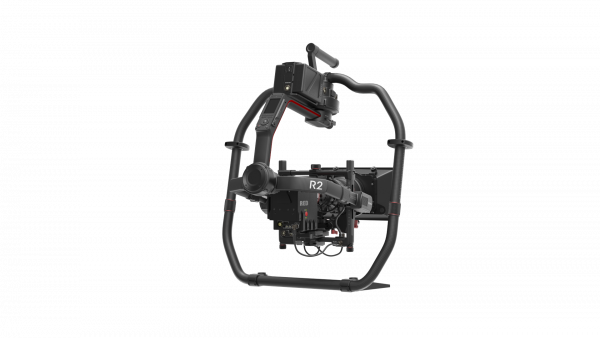

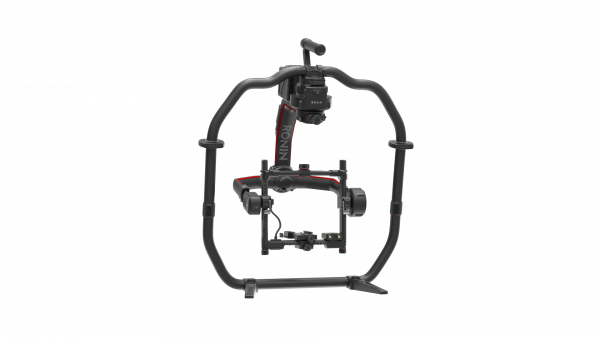

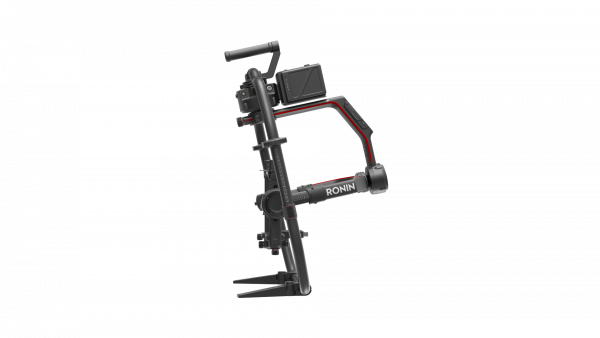

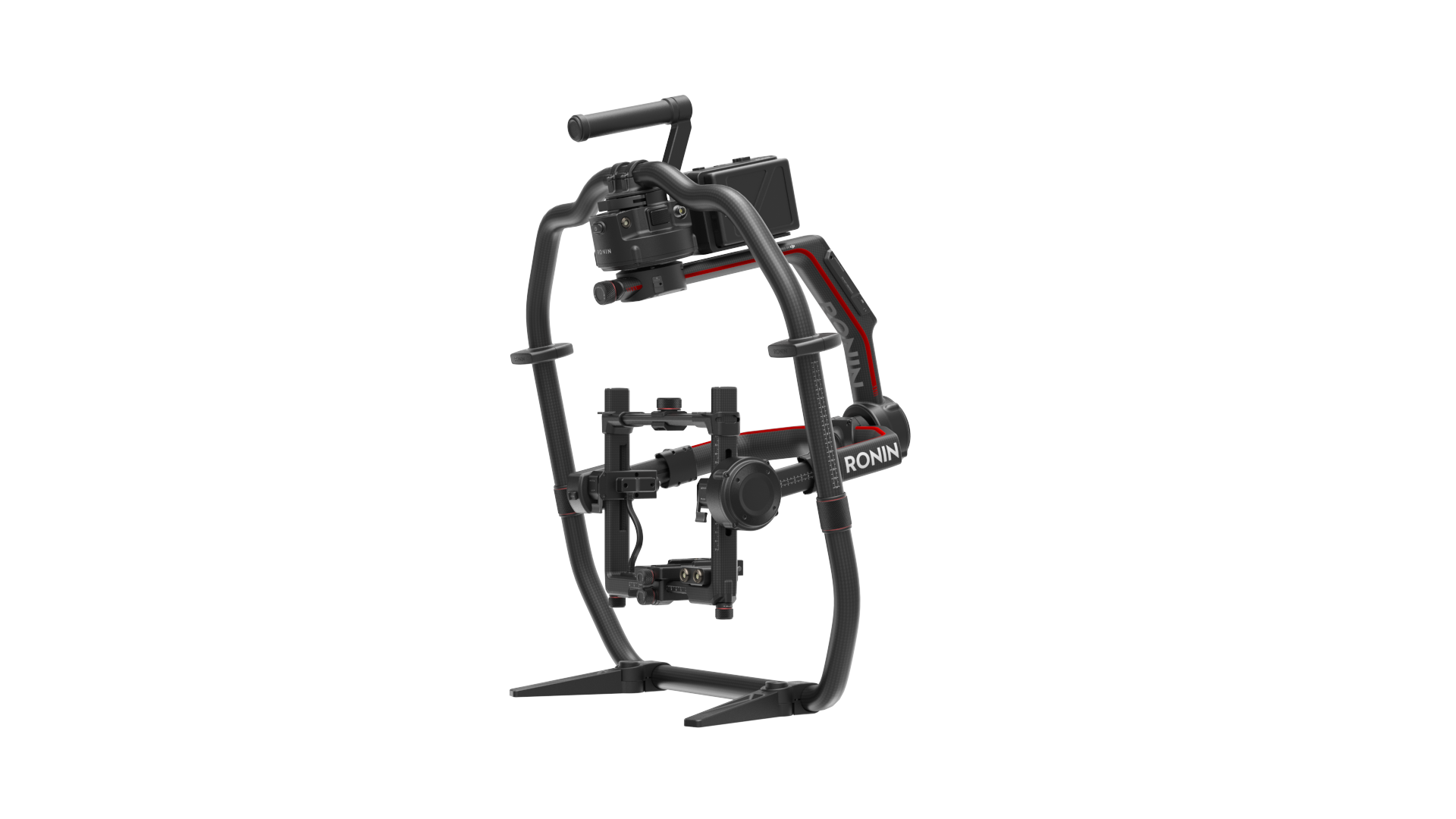

DJI Ronin 2

  • Temperature Sensors
  • Built-in Touch Panel
  • Built-in GPS
  • USB Type-C Connection
  • Power and Video Signal through Slip Ring
  • DJI Specialized Gimbal Drive Motors with Encoders
  • Dual Battery System
  • Bluetooth Module
  • D-Bus Receiver Supported
  • 2.4 GHz/5.8 GHz Receiver
  • Operation Modes
  • Underslung Mode
  • Upright Mode
  • Briefcase Mode
  • Handheld, Car Mount, Aerial, Tripod, & Steadicam Mode
  • Built-in, independent IMU module
  • DJI Advanced 32-Bit ARM Processor

Category

General

Built-In Functions



  • Operation Modes
  • Underslung Mode
  • Upright Mode
  • Briefcase Mode
  • Handheld, Car Mount, Aerial, Tripod, & Steadicam Mode
  • Built-in, independent IMU module
  • DJI Advanced 32-Bit ARM Processor
  • DJI Specialized Gimbal Drive Motors with Encoders
  • Dual Battery System
  • Bluetooth Module
  • D-Bus Receiver Supported
  • 2.4 GHz/5.8 GHz Receiver
  • Temperature Sensors
  • Built-in Touch Panel
  • Built-in GPS
  • USB Type-C Connection
  • Power and Video Signal through Slip Ring

Peripheral



Camera Tray Dimensions
Maximum depth from the center of gravity on camera
base plate: 245 mm
Maximum height measured from top of the camera base plate:
165 mm
Maximum width: 180 mm
Accessory Power Connections

14.4 V x 4 Camera Cage (Combined 8 A), 12.6V x 2 Pan Motor (Combined 4 A), 12.6 V x1 P-Tap (8 A)

GCU Input Power

Intelligent Battery: 4280 mAh-22.8 V

Connections

2.4 GHz/5.8 GHz Remote Control; Bluetooth 4.0; USB Type-C

PC Assistant Software Requirements

Windows 7 or above; Mac OS X 10.11 or above

Mobile Assistant Software Requirements

iOS 9 or above; Android 4.4 or above

Mechanical & Electrical Characteristics

Working Current
  • Static current: 300 mA (@22.8 V)
  • Dynamic current: 500 mA (@22.8 V)
  • Locked motor current: Max 15 A (@22.8 V)
Operating Temperature

-4F ~ 122F (-20oC ~ 50oC)

Weight

Including handle bar: 12 lb (5.5 kg)
Excluding handle bar: 9 lb (4.2 kg)

Gimbal Dimensions

Excluding handle bar : 350 mm (W) x 416 mm (D)x 530 mm (H)
Including handle bar : 630 mm (W) x 416 mm (D) x 720 mm (H)

Working Performance

Load Weight (Reference Value)

30 lbs (13.6 kg)

Angular Vibration Range
± 0.02
Maximum Controlled Rotation Speed

Pan axis: 400/s
Tilt axis: 360/s
Roll axis: 360/s

Mechanical Endpoint Range

Pan axis control: 360 continuous rotation

Tilt axis control: ±135
Roll axis control: ± 220
Controlled Rotation Range

Pan axis control: 360o continuous rotation
Tilt axis control: +45 to -135
Roll axis control: ± 45
