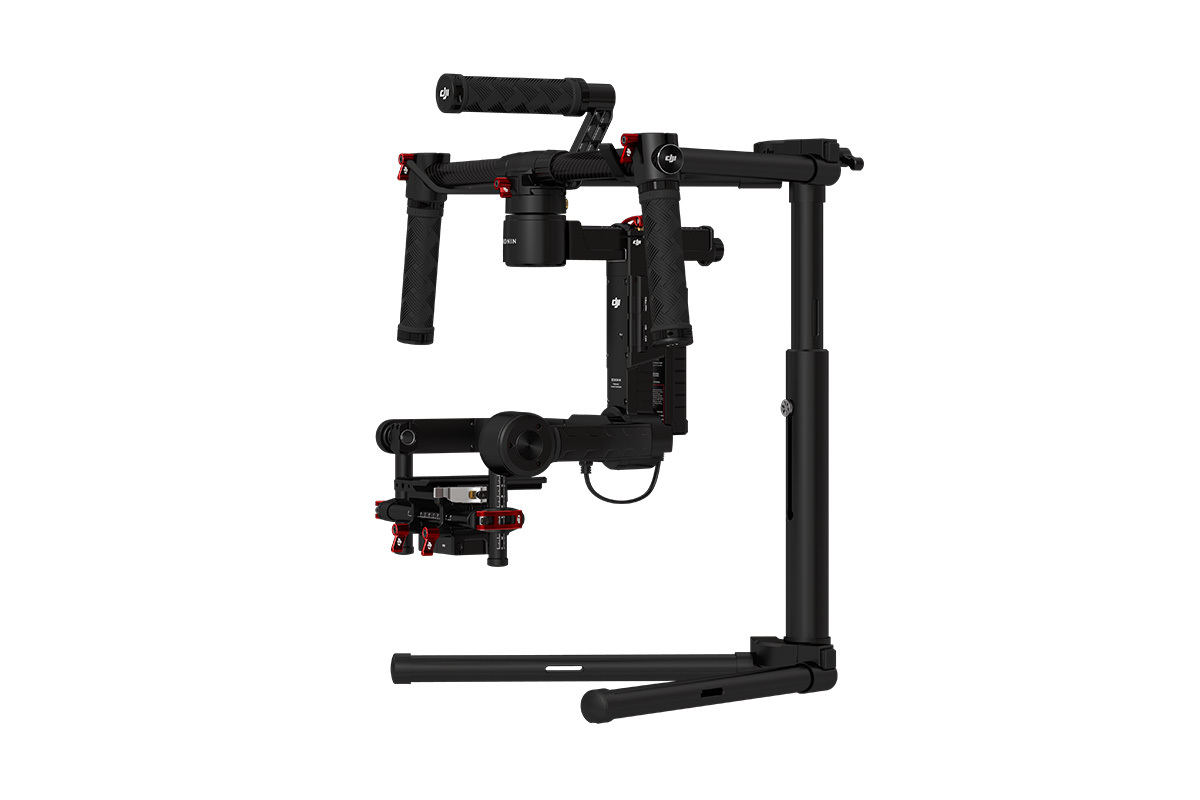

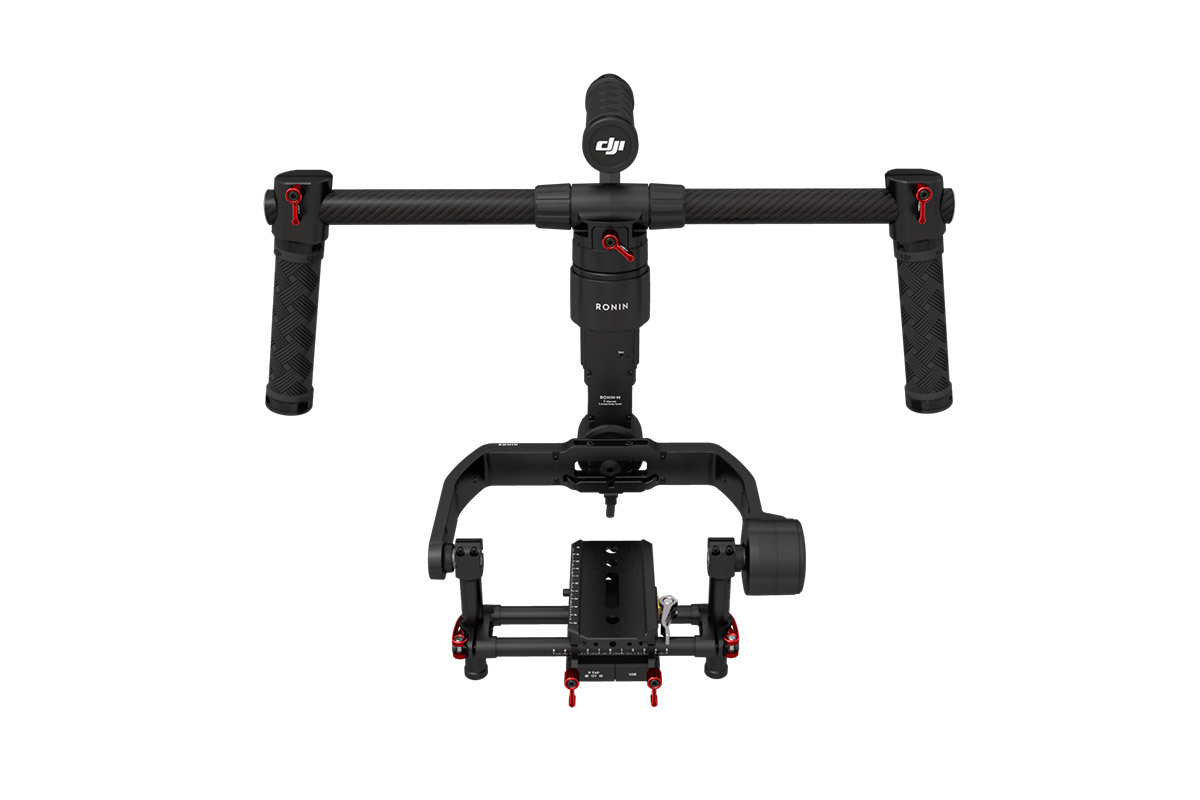

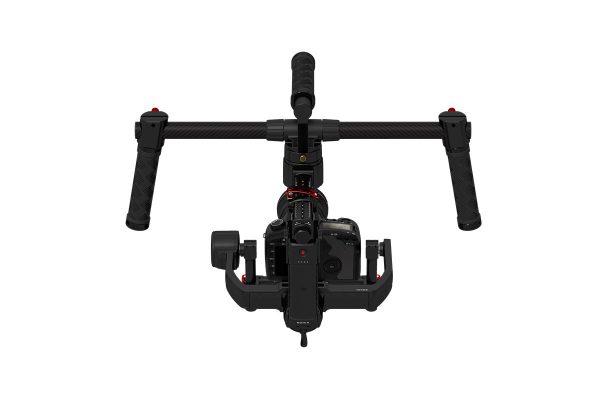

DJI Ronin M

  • Total weight of 2.3 kg (5.07 lb.)
  • Support cameras up to 3.6 kg (8 lb.)
  • Precision of Control: ±0.02°
  • Tool-Less Balance Adjustment System
  • Transmitter for Remote Pan/Tilt Control
  • Silent mode for quiet operation
  • USB and Power Tap Power Outputs
  • Assistant Software for iOS and Windows
  • Bluetooth Wireless Interface for Setup

Category

General

Built-In Functions
  1. Three Operation Modes
    · Underslung Mode
    · Upright Mode
    · Briefcase Mode
  2. Built-in, independent IMU module
  3. DJI Specialized Gimbal Drive Motors with Encoders
  4. Bluetooth Module
  5. USB Connection
  6. 2.4GHz Receiver
  7. Temperature Sensor
  8. DJI Advanced 32-Bit DSP Processor
  9. D-Bus Receiver Supported

Peripheral

Camera Tray Dimensions
Maximum depth at center of mass on camera base plate: 120mm
Maximum height measured from top of camera base plate: 195mm
Maximum width: 160mm
Accessory Power Connections
12V Regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1
GCU Input Power
4S Ronin-M Battery
Connections
2.4GHz Remote Controller, Bluetooth 4.0, USB 2.0
PC Assistant Software Requirements
Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit);Mac OS X 10.9 or above
Mobile Assistant Software Requirements
Mobile Device: iOS 6.1 or above, Android 4.3 or above

Mechanical & Electrical Characteristics

Working Current
· Static current: 300mA (@16V)
· Dynamic current: 600mA (@16V)
· Locked motor current: Max 10A (@16V)
Operating Temperature
-15° C ~ 50° C (-5° F ~ 120° F)
Weight
2.3kg (5.07lb) fully loaded with handlebar
Gimbal Dimensions
500mm(W) x 210mm(D)x 420mm(H)

Working Performance

Load Weight (Reference Value)
3.6kg (8lb)
Angular Vibration Range
± 0.02°
Maximum Controlled Rotation Speed
· Pan axis: 90°/s
· Tilt axis: 100°/s
· Roll axis: 30°/s
Mechanical Endpoint Range
· Pan axis: 360°
· Tilt axis: +105° /-190°
· Roll axis: ± 110°
Controlled Rotation Range
· Pan axis control: 360°
· Tilt axis control: +105° /-190°
· Roll axis control: ± 25°
