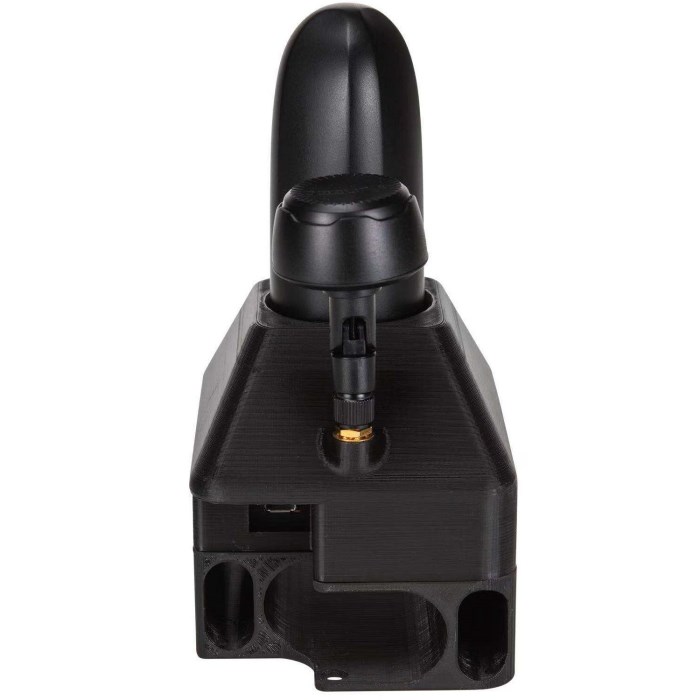

The RTK GPS Ground Station allows the drone to reach centimetre-precision accuracy in less than 30 seconds even under challenging conditions such as canyons, cities or forests.
This RTK system is one of the fastest & most reliable RTK systems in the world & has been developed by award-winning Swiss company Fixposition.
Fully integrated to YUNEEC H520
– 5 Hz update rate of position, velocity and time
– RTK (Real Time Kinematic) module for high accuracy relative positioning: 1 cm + ppm horizontal / 1.5 cm + ppm vertical
– Keep cm precision in even GNSS challenging environment (e.g. between high buildings)
– For faster and more precise mapping (e.g. complex surveying, inspections, mapping, 3D displays)
– All data including raw GNSS data and real time solution can be logged on board – ready for PPK (Post Processed Kinematics)
– Support signals of up to 3 GNSS constellations among GPS, GLONASS, Galileo and BeiDou
– Compatible with all existing Yuneec H520 camera payloads
– RTK module available separately or in combination with the H520 (The separate purchase of the module requires professional installation by the Yuneec service team)
– 5 Hz update rate of position, velocity and time
– RTK (Real Time Kinematic) module for high accuracy relative positioning: 1 cm + ppm horizontal / 1.5 cm + ppm vertical
– Keep cm precision in even GNSS challenging environment (e.g. between high buildings)
– For faster and more precise mapping (e.g. complex surveying, inspections, mapping, 3D displays)
– All data including raw GNSS data and real time solution can be logged on board – ready for PPK (Post Processed Kinematics)
– Support signals of up to 3 GNSS constellations among GPS, GLONASS, Galileo and BeiDou
– Compatible with all existing Yuneec H520 camera payloads
– RTK module available separately or in combination with the H520 (The separate purchase of the module requires professional installation by the Yuneec service team)
SKU: YUNH520RTK102
Categories: RTK/PPK, YUNEEC Accessories
