- Smart Hexacopter
- Reliable & Efficient
- 1″4K Camera
- Intelligent Flight Modes
- Intel® RealSense™ Technology (RS)
- New flight controller based on PX4 with integrated backup
- 5-rotor mode to compensate a motor failure
- No transfer to remote servers
- RTF – Ready To Fly

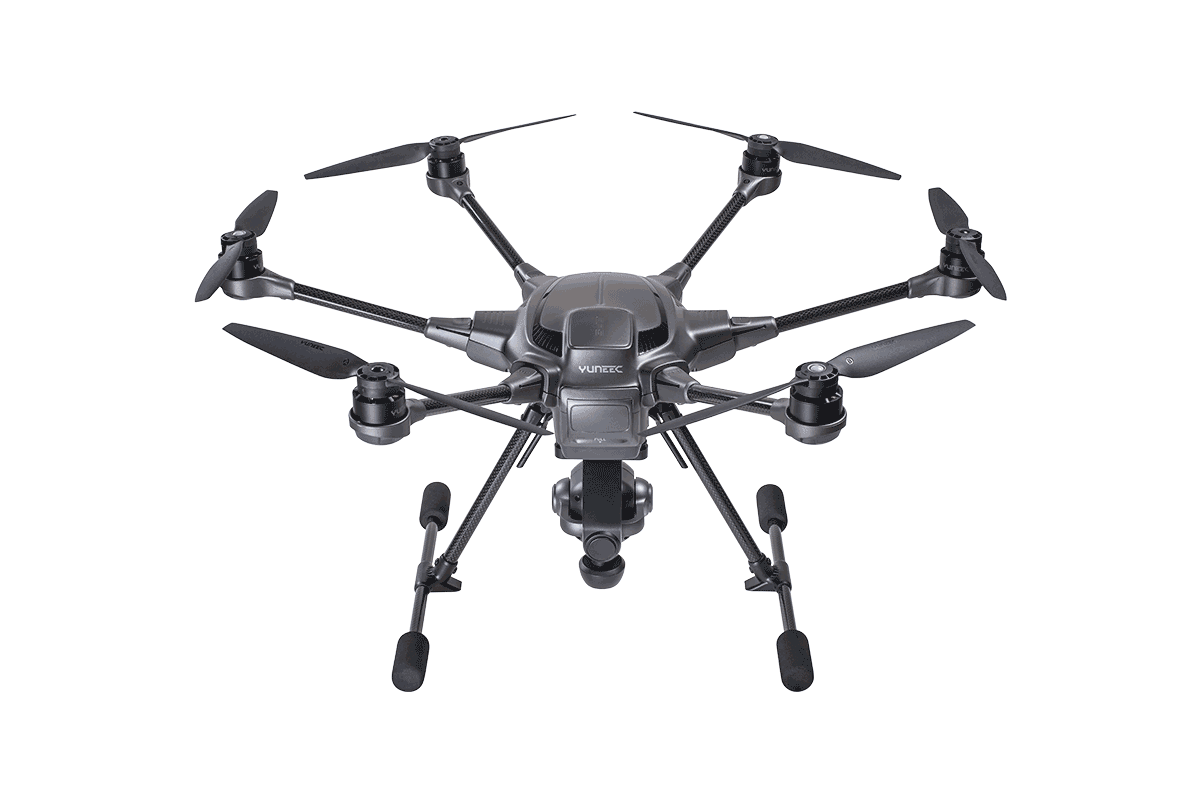

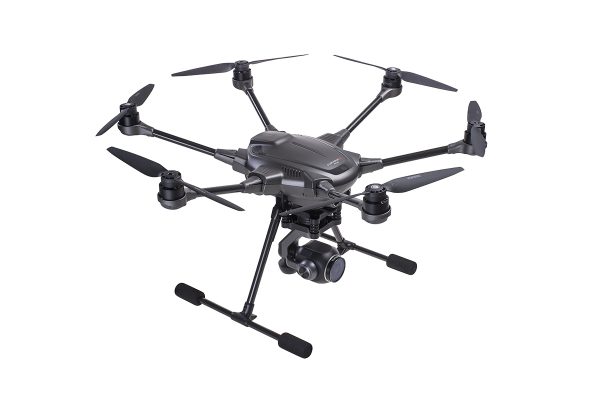

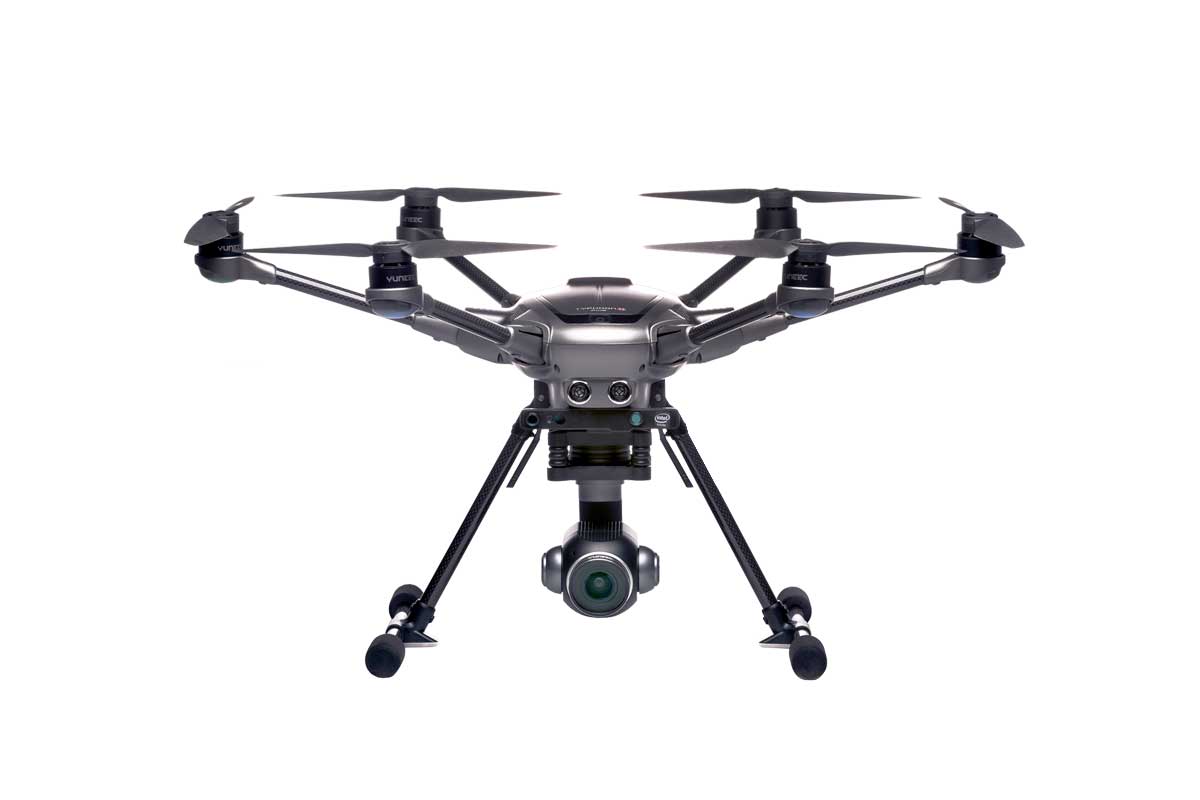

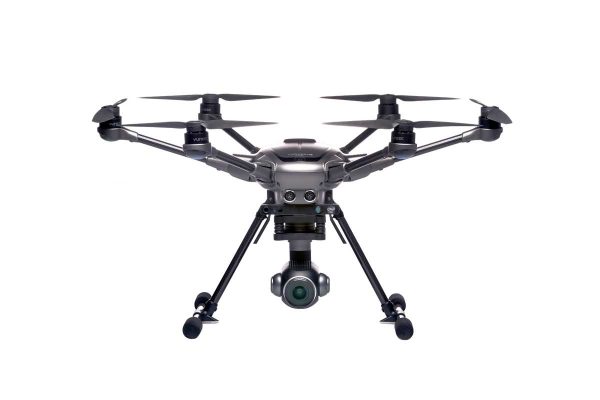

Smart Hexacopter
A top image quality combined with the reliability and automatic flight modes every photo and videographer desires. The Typhoon H Plus RS hexacopter is equipped with a 1″ camera with 4K video resolution, a PX4-based flight controller and flight modes from Follow Me and Point of Interest to Curve Cable Cam. Relevant core areas of the Typhoon H Plus RS are now even more shielded against electrical influences and ensure a maximum reliability together with the PX4 controller and the 6-rotor design.
Reliable & Efficient
We cleaned up inside – refined wiring ensures optimized air circulation and improved cooling. Through numerous optimizations, the new Typhoon H Plus RS is one of the quietest and most efficient hexacopters in its class and manages 25 minutes of flight time under normal weather and flight conditions. The redesigned ST16 remote control has a brighter display, an additional USB slot and a completely new intuitive user interface.
1″ 4K Camera
The supplied C23 camera is equipped with an endless 360° rotating gimbal as known from the Typhoon H series. The 1 “sensor captures photos up to 20 MP and videos up to 4K at 60 frames per second, has an improved low light output and an increased dynamic range.
Intelligent Flight Modes
Take your creativity to the next level by letting Typhoon H Plus RS’s autonomous flight modes focus on the flying while you focus on the shot.
Orbit Me – The Typhoon H Plus RS flies a circular path around you, keeping the camera trained on you the whole time.
Point of Interest – Select a subject and Typhoon H Plus RS will orbit that subject autonomously
Journey – Typhoon H Plus RS will automatically go up and out, as far as 90 m, and capture the perfect aerial selfie.
Follow Me / Watch Me – Follow Me ensures Typhoon H Plus RS moves along with you. Watch Me tells the H Plus RS to follow you while always pointing the camera at you wherever you go
Curve Cable Cam – Easily program an invisible route for H Plus RS to fly along. The hexacopter will fly between pre-set coordinates while independently controlling camera position.
Return Home – Simply switch to Home Mode and the Typhoon H Plus RS will return and land within 8 m of you.
Intel® RealSense™ Technology
This Typhoon H Plus is equipped with the Intel® Real-Sense ™ technology. Thanks to 3D and depth-sensing technology, the RealSense™ system detects objects, movements and distances, allowing the drone to operate independently and effortlessly avoid obstacles in its surrounding. Obstacles and a safe flight route will be saved for the next time.
Specifications
Aircraft
Weight 1645 g (without camera)
Diagonal lenght (without rotor blades) 520 mm
Flight time Up to 25 min (with C23 camera)
Maximum rate of ascent 4 m/s
Maximum rate of descent 2.5 m/s
Maximum flight speed 13.5 m/s
Maximum flying altitude 500 m
Motors 730kV
Battery 4S 5250mAh LiPo
Charger SC4000-4H
Operating temperature 0°C – 40°C
Obstacle Avoidance
Sensor Ultrasonic Sensor
Flight speed 4 m/s
Operating environment Height > 1.5 m / Distance to obstacles < 5 m
Camera
Dimensions 115 x 80 x 130 mm
Weight 350 g
Sensor 1″ CMOS
Effective pixels 20 MP
Video resolution max 4K/60FPS
Focal lenght 23 mm
View field 91°
ISO range 100 – 6400
Shutter speed 4–1/8000s
White balance Lock, Sunny, Cloudy, Automatic, Fluorescent, Incandescent, Sunset
Angular vibration range ±0.02°
Photo format JPG, JEG+DNG
Video format MP4
Operating temperature – 10°C – 40°C
Control range Tilt: 15° to -90° / Pan:360°
Remote
Operating system Android™
Number of channels 16
Transmission distance range (optimum conditions) 1.6 km
Frequency band 2.4 GHz
Video link frequency band 5.8 GHz
Video link resolution 720p
Lcd screen size 7″
Flight system telemetry data on screen Yes
Built-in LiPo battery (voltage/capacity) 3.6V 8700mAh 31.32Wh Li-ion
Working temperature 0°C – 40°C
Connection types HDMI, USB
